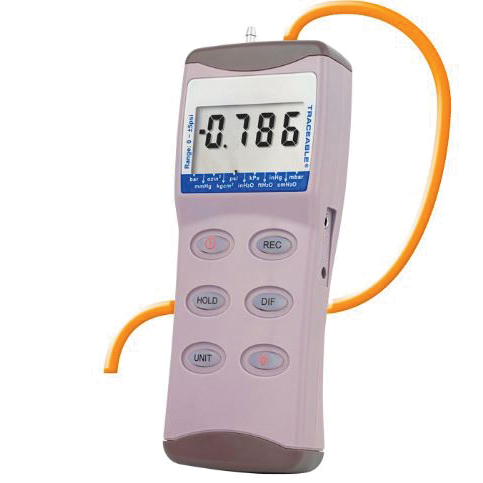

Traceable® Manometer, 2.75 x 7-.8 x 1-.8", -15 to 15 psi Range
Manometer, 2.75 x 7-1/8 x 1-1/8", -15 to 15 psi Range, 30 Maximum Allowed psi, -1.034 to 1.034 bar Range, -1034 to 1034 mbar Range, with Computer Output, Traceable® Certificate, Hose/tubing, Batteries, Carrying Case, Paper Roll
- Manufacturer Part No: 3461CC
- SECO Part No: XCC-3461
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
Manometer displays gauge and differential pressure/vacuum in eleven different units. Response time is 0.5 second. Large 5/8-inch-high digits are visible from 6'. At the touch of a button unit may be zeroed or any pressure may set to zero. Differential feature permits reading the difference of the pressure or vacuum between two different sources. Memory feature recalls highest and lowest reading over any time period. A data hold key freezes the display to capture readings. Brilliant backlighting permits reading even in dark areas. Computer output permits all units to be connected to a computer for monitoring and storing unlimited results. Accuracy is ±0.3% of full scale between 0 to 50°C.
| Dimension | : | 2.75 x 7.12 x 1.12" |
| Inch/H20 Range | : | -415 to 415 |
| ft/H20 Range | : | -35 to 35 |
| mm/ Mecury Range | : | -776 to 776 |
| Bar Range | : | -1.034 to 1.034 |
| Bar Resolution | : | 0.001 |
| cm/H20 Range | : | -1055 to 1055 |
| cm/H20 Resolution | : | 1 |
| ft/H20 Resolution | : | 0.02 |
| Inch/H20 Resolution | : | 0.3 |
| Inch/Mercury Range | : | -31 to 31 |
| Inch/Mercury Resolution | : | 0.03 |
| Includes | : | Computer Output, Traceable® Certificate, Hose/tubing, Batteries, Carrying Case, Paper Roll |
| kg/cm2 Range | : | -1.06 to 1.06 |
| kg/cm2 Resolution | : | 0.001 |
| kPa Range | : | -103 to 103 |
| kPa resolution | : | 0.1 |
| Maximum Allowed PSI | : | 30 |
| mbar Range | : | -1034 to 1034 |
| mbar Resolution | : | 1 |
| mm/Mercury Resolution | : | 0.5 |
| oz/inch2 Range | : | -240 to 240 |
| oz/inch2 Resolution | : | 0.2 |
| PSI Range | : | -15 to 15 psi |
- Portable unit measures and displays differential pressure/vacuum in 11 different units: psi, mbar, bar, cm/H2O, inch/H2O, feet/H2O, mm/Hg, inch/Hg, kg/cm2, oz/sq.", kPa
- Hose fittings on the unit permit hose/tubing with inside diameters from 1/16 to 3/16"
- Count-up timer displays up to 99 hr, 59 min, 59 sec
