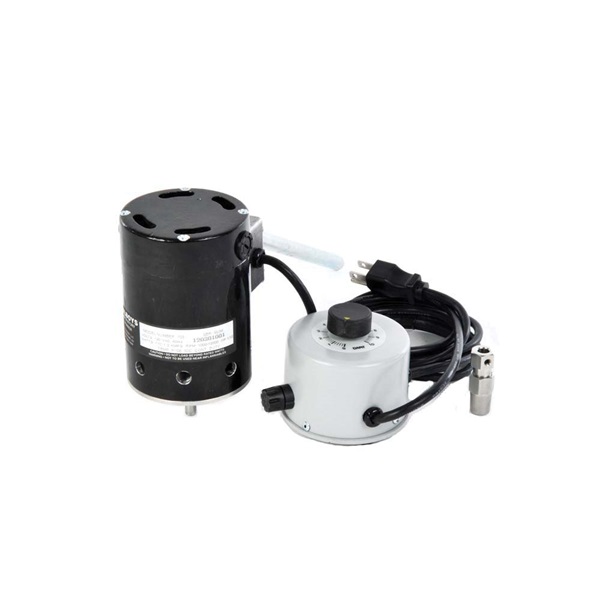

Talboys™ Model 103 High Speed Overhead Mixer, 12.7 x 11.2 x 20.3 cm
Overhead Mixer, High Speed, 103 Model, 5 x 4.4 x 8", 7.9 mm Shaft, 1000 to 7500 rpm (Direct Drive) Speed Range, 1/12 Horsepower, 1.3 A, 50/60 Hz, 120 V, Electronic Speed Control, 1 Number of Output Shafts
- Manufacturer Part No: 103
- SECO Part No: 22-1998-01
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
Talboys Model 103 Overhead Mixer is ideal for high speed dispersion up to 7500 rpm. Mixer has direct drive and is designed for continuous duty. The model 103 overhead mixer has a compact design for low torque, high speed mixing. Perfect units for low viscosity mixing. Overhead mixer includes a collet chuck and 8-inch mounting rod with carriage bolt and wrench for mounting motor to support stands. An additional clamp ( 110B or 112 ) is required to attach the motor's mounting rod to a support stand. Support stands and holders are sold separately. Overhead mixers include a 5 year, industry leading limited warranty on parts and labor.
| Includes | : | Collet Chuck and 8" Mounting Rod with Carriage Bolt and Wrench |
| Model | : | 103 |
| Voltage | : | 120 V |
| Dimension | : | 5 x 4.4 x 8" |
| Torque | : | 0.7 in-lb (Direct Drive) |
| Horse Power | : | 1/12 Hp |
| Speed Range | : | 1000 to 7500 rpm (Direct Drive) |
| Frequency | : | 50/60 Hz |
| Amperage | : | 1.3 A |
| Shaft Size | : | 7.9 mm |
| Speed Control | : | Electronic |
| Number of Output Shafts | : | 1 |
| Chuck Type | : | Collet, Model 193 |
- Table mounted basic speed control
- The speed control is remotely attached by a 42" (107 cm) cord
- Speed control can be placed on a countertop or shelf close to the stirring apparatus
- 5 year industry leading warranty
