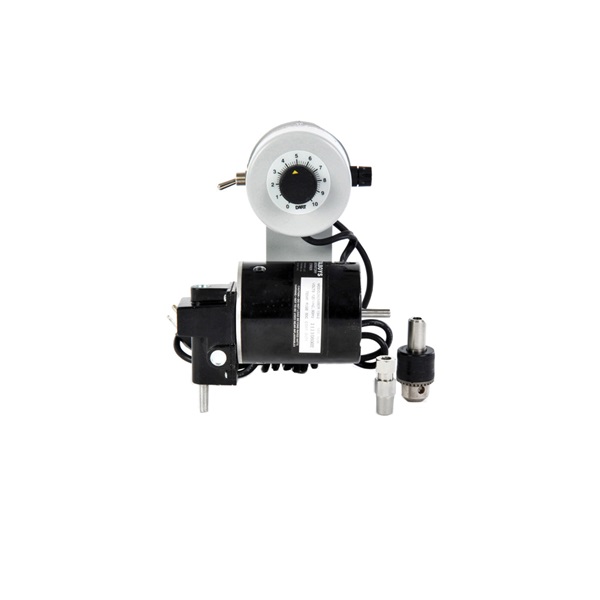

Talboys™ Model 134-2 Heavy Duty Overhead Mixer, 6.5 x 8.5 x 7"

Overhead Mixer, Heavy Duty, 134-2 Model, 6.5 x 8.5 x 7", 7.9 mm Shaft, 500 to 7500 rpm (Direct Drive), 50 to 750 rpm (10:1), 10 to 125 rpm (60:1) Speed Range, 1/18 Horsepower, 1.1 A, 50/60 Hz, 120 V, Transi-Stir Speed Control, 3 Number of Output Shafts

  • Manufacturer Part No: 134-2
  • SECO Part No: 22-1990-01
  • Sold As:
  • Availability: loading

Talboys Model 134-2 is a durable and rugged, extremely versatile high viscosity mixer. Unit offers the power and versatility required for viscous mixing. Heavy-Duty Overhead Mixer offers higher horsepower and greater torque over available speed ranges for difficult mixing jobs. Model 134-2 overhead mixer maintains constant speed even when the viscosity changes. Mixer is fitted with an adjustable Jacobs style chuck that accepts any accessory shaft. Overhead mixer includes an adjustable chuck and 8-inch mounting rod with carriage bolt and wrench for mounting motor to support stands. An additional clamp ( 110B or 112 ) is required to attach the motor's mounting rod to a support stand. Support stands and holders are sold separately. Overhead mixers include a 5 year, industry leading limited warranty on parts and labor.

Includes : Adjustable Chuck and 8" (20.3 cm) Mounting Rod with Carriage Bolt, Wrench, Holder (110B or 112)
Model : 134-2
Voltage : 120 V
Dimension : 6.5 x 8.5 x 7"
Torque : 0.5 in-lb (Direct Drive), 4.7 in-lb (10:1), 15 in-lb (60:1)
Horse Power : 1/18 Hp
Speed Range : 500 to 7500 rpm (Direct Drive), 50 to 750 rpm (10:1), 10 to 125 rpm (60:1)
Frequency : 50/60 Hz
Amperage : 1.1 A
Shaft Size : 7.9 mm
Speed Control : Transi-Stir
Number of Output Shafts : 3
Chuck Type : Adjustable, Model 191D
  • Top mounted standard speed control
  • Features a unique triple shaft design
  • Extremely powerful and versatile
  • Offers high torque for slow speed mixing
  • Mixes small quantities of high viscosity materials
  • 5 year industry leading warranty
  • Mixer includes adjustable chuck and 8" (20.3 cm) mounting rod with carriage bolt and wrench for mounting motor to support stands
  • An additional holder (110B or 112) is required to attach the motor's mounting rod to a support stand
  • Support stands and holders sold separately
