Talboys™ 104A
Share
  1. pin-int
Email Print

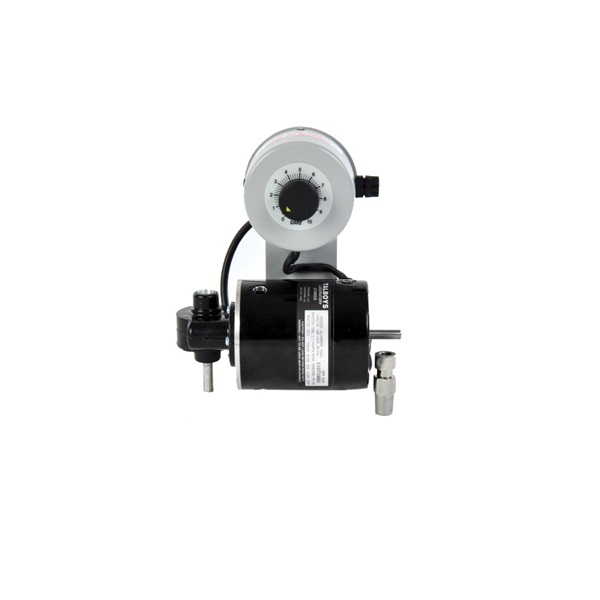

Talboys™ Model 104A Medium Duty Overhead Mixer, 6.5 x 8.5 x 7"

Overhead Mixer, Medium Duty, 104A Model, 6.5 x 8.5 x 7", 7.9 mm Shaft, 1000 to 7500 rpm (Direct Drive), 100 to 750 rpm (10:1) Speed Range, 1/18 Horsepower, 1.1 A, 50/60 Hz, 120 V, Electronic Speed Control, 2 Number of Output Shafts

  • Manufacturer Part No: 104A
  • SECO Part No: 22-1978-01
  • Sold As:
  • Availability: loading

Talboys Model 104A Overhead Mixer is a durable and rugged multi-purpose mixer with moderate torque and wide range of speed. The 104 overhead mixer is a medium duty, multi-purpose mixer that offers more power. Unit offers two mixing shafts for versatility. The high speed drive shaft mixes emulsions. The low speed drive shaft handles high viscosity mixing. Overhead mixer includes a collet chuck and 8-inch mounting rod with carriage bolt and wrench for mounting motor to support stands. An additional clamp ( 110B or 112 ) is required to attach the motor's mounting rod to a support stand. Support stands and holders are sold separately. Overhead mixers include a 5 year, industry leading limited warranty on parts and labor.

Includes : Collet Chuck and 8" (20.3 cm) Mounting Rod with Carriage Bolt, Wrench, Clamp
Model : 104A
Voltage : 120 V
Dimension : 6.5 x 8.5 x 7"
Torque : 0.5 in-lb (Direct Drive), 4.7 in-lb (10:1)
Horse Power : 1/18 Hp
Speed Range : 1000 to 7500 rpm (Direct Drive), 100 to 750 rpm (10:1)
Frequency : 50/60 Hz
Amperage : 1.1 A
Shaft Size : 7.9 mm
Speed Control : Electronic
Number of Output Shafts : 2
Chuck Type : Collet, Model 193
  • Top mounted basic speed control
  • Compact design saves space
  • Dual shafts add versatility
  • 5 year industry leading warranty
  • Mixer includes collet chuck and 8" (20.3 cm) mounting rod with carriage bolt and wrench for mounting motor to support stands
  • An additional clamp (110B or 112) is required to attach the motor's mounting rod to a support stand
  • Support stands and holders sold separately
