Talboys™ Model 105 Light Duty Overhead Mixer, 12.7 x 11.4 x 10.2 cm
Overhead Mixer, Light Duty, 105 Model, 5 x 4.5 x 4", 6.4 mm Shaft, 1550 rpm (Direct Drive) Speed Range, 1/80 Horsepower, 0.77 A, 50/60 Hz, 120 V, On/Off Switch Speed Control, 1 Number of Output Shafts, Mixes Five Gallons of Water
- Manufacturer Part No: 105
- SECO Part No: 22-1957-01
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :

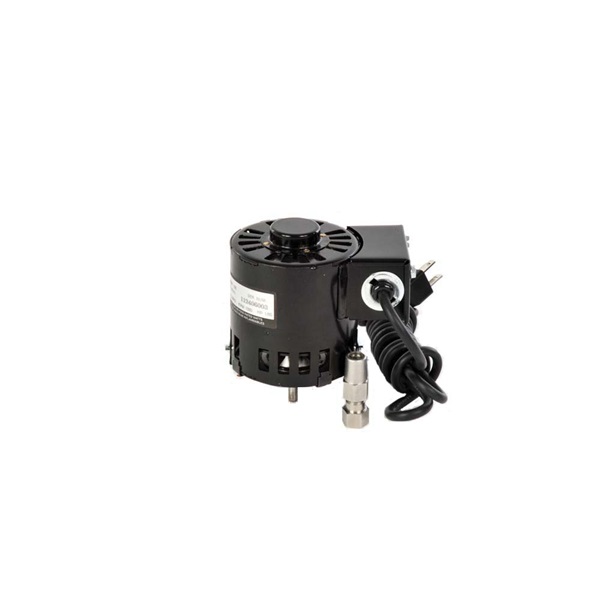

Talboys Model 105 Overhead Mixer is a general purpose, economical, compact, and durable mixer with speeds up to 7500 rpm. Mixer is ideal for low viscosity mixing. The model 105 overhead mixer offers low torque for general purpose mixing and has a continuous duty rating. Overhead mixer includes a collet chuck and 8-inch mounting rod with carriage bolt and wrench for mounting motor to support stands. An additional clamp ( 110B or 112 ) is required to attach the motor's mounting rod to a support stand. Support stands and holders are sold separately. Overhead mixers include a 5 year, industry leading limited warranty on parts and labor.
| Includes | : | Collet Chuck and 8" Mounting Rod with Carriage Bolt and Wrench |
| Model | : | 105 |
| Voltage | : | 120 V |
| Dimension | : | 5 x 4.5 x 4" |
| Torque | : | 0.5 in-lb (Direct Drive) |
| Horse Power | : | 1/80 Hp |
| Speed Range | : | 1550 rpm (Direct Drive) |
| Frequency | : | 50/60 Hz |
| Amperage | : | 0.77 A |
| Shaft Size | : | 6.4 mm |
| Speed Control | : | On/Off Switch |
| Number of Output Shafts | : | 1 |
| Chuck Type | : | Collet, Model 192 |
- Economic, light duty batch mixer offers a fixed speed of 1550 rpm
- An internal overload feature shuts down motor when it becomes too hot
- Mixes five gallons of water
- Adjusta-speed control
- 5 year industry leading warranty
