Spectrosil® Quartz Fluorometer Cell, 10 mm Path Length
Fluorometer Cell, 10 mm Path Length, 12.5 L x 12.5 W x 48 mm H Exterior, 10 L x 10 mm W Interior, Quartz, Rectangular, 3.5 ml Nominal Volume, 4 Polished Windows, 170 to 2700 nm Range, For Fluorometers
- Manufacturer Part No: 23-Q-10
- SECO Part No: 23-Q-10
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :

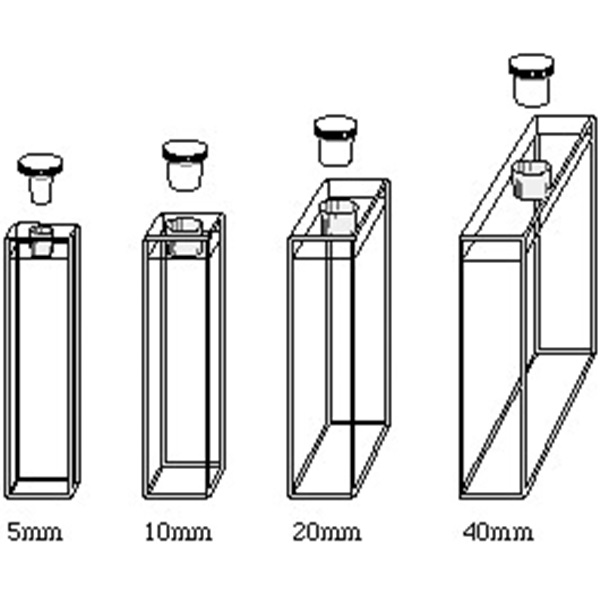

Type 23 cells are identical to standard rectangular fluorometer cells as listed on page 26 except that instead of having an open rectangular hole at the top, a block is fused to the top of the cell with a ground hole to receive a PTFE stopper. This provides a more suitable seal for volatile liquids. A PTFE stopper is supplied with each cell. Two stoppers are supplied with cells which have a path length of 40 mm or greater. Smaller volume Types 29F and 28F are identical to types 9F semi-micro and type 18F micro cell ranges except they have a stopper instead of a lid. A PTFE stopper is supplied with each cell.
| Material (ml/min) | : | Quartz |
| Shape | : | Rectangular |
| Path Length | : | 10 mm |
| For Use With | : | For Fluorometers |
| Length | : | 12.5 mm Exterior, 10 mm Interior |
| Width | : | 12.5 mm Exterior, 10 mm Interior |
| Exterior Height | : | 48 mm |
| Thickness | : | 1.25 mm |
| Type | : | Standard |
| Range | : | 170 to 2700 nm |
| Nominal Volume | : | 3.5 ml |
| Number Polished Window | : | 4 |
| Cell Top | : | Open |
| Includes | : | With Stopper |
- Physical configuration: Window and base thickness (1.25 mm)
- Primary use: Fluorescence measurement in useable range
- Clear windows: Four, with base polished
- Instrument: Can be used with virtually all fluorometers
- Cell top: PTFE stopper in "ground type" joint. Liquid tight for up to 12 hours
