Spectrosil® Quartz Cylindrical Cell, 50 mm Path Length
Cylindrical Cell, 50 mm Path Length, 22 dia x 52.5 mm L Exterior, 50 L x 19 mm W Interior, Quartz, Cylindrical, 14.10 ml Nominal Volume, 2 Polished Windows, 170 to 2700 nm Range, With 2 Stoppers, Long Pathlength
- Manufacturer Part No: 34-Q-50
- SECO Part No: 21-8382-05
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :

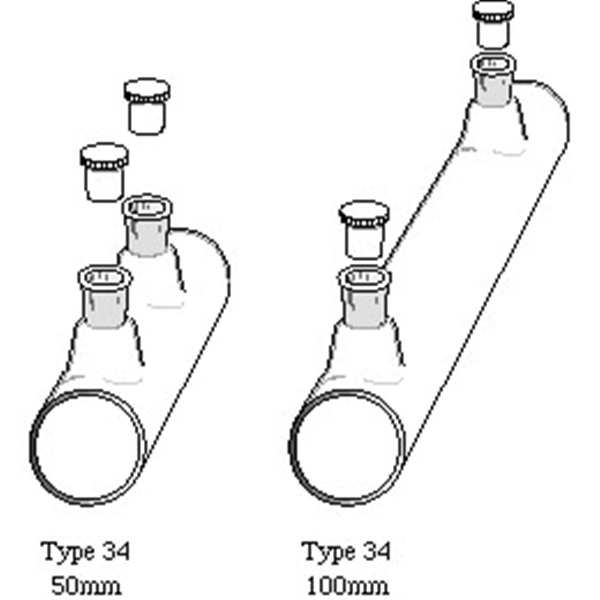

Type 32 and 34 cells range from path lengths of 10 mm to 100 mm with an internal diameter of 19 mm. Other diameters available from 5 mm ID to 30 mm ID on request. Please note when filling cylindrical cells, to avoid damage to the windows, do not fill cell to the top. Leave an air gap otherwise the windows will be broken by the hydraulic pressure of the stopper being inserted. PTFE stoppers are supplied with each cell as pictured.
| Material (ml/min) | : | Quartz |
| Shape | : | Cylindrical |
| Path Length | : | 50 mm |
| For Use With | : | For Spectrophotometers and Colorimeters |
| Length | : | 52.5 mm Exterior, 50 mm Interior |
| Width | : | 19 mm Interior |
| Range | : | 170 to 2700 nm |
| Nominal Volume | : | 14.10 ml |
| Number Polished Window | : | 2 |
| Includes | : | With 2 PTFE Stopper |
- Primary use: Absorbtion measurement with low absorbing samples
- Instrument: Can be used with spectrophotometers that can use cylindrical cells
- Cell top: PTFE stopper with "ground type" fitting
