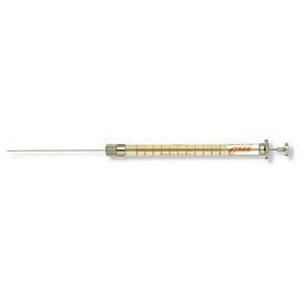

SGE Plunger-in-Needle NanoVolume Manual Syringes, 5 µl, 70 mm L
NanoVolume Manual Syringes, 5 µl, 70 mm L, 0.365 ID x 0.63 mm OD, Stainless Steel, 23 ga, Cone Tip, Plunger-in-Needle, 8 mm OD Borosilicate Glass Barrel, 54.1 mm/63.7 mm Stroke Length
- Manufacturer Part No: 000802
- SECO Part No: 000802
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
With the ability to inject down to 50 nl with high precision and accuracy, SGE nanovolume syringes are perfect for nanovolume capillary chromatography injection. The sample is only drawn up into the needle, not the syringe barrel. When the plunger is depressed, the sample is completely dispensed by the Nanovolume plunger that extends right to the tip of the needle. The plungers and needles are matched sets and must be replaced as a set.
| Volume | : | 5 µl |
| Diameter | : | 0.365 ID x 0.63 mm OD, 8 mm OD Barrel |
| Length | : | 70 mm |
| Model | : | 5BR-7 |
| Needle Material | : | Stainless Steel |
| Accuracy | : | ±2% |
| Autoclavable | : | Yes |
| Barrel Material | : | Borosilicate Glass |
| Gauge | : | 23 ga |
| Needle Type | : | Cone Tip |
| Plunger Style | : | Plunger-in-Needle |
| Point Style | : | AS |
| Replacement Plunger | : | 035057 |
| Standard Needle Dead Volume | : | 0 |
| Stroke Length | : | 54.1 mm/63.7 mm |
| Syringe Type | : | Nano Volume, Manual |
| Temperature Range | : | 70°C |
- Plunger extends to needle tip
- Sample contained in needle only
- Needle and plunger must be replaced together
- RoHS Compliant 2002/95/EC Directive
