Orion™ Versa Star™ VSTAR-PH
Share
  1. pin-int
Email Print

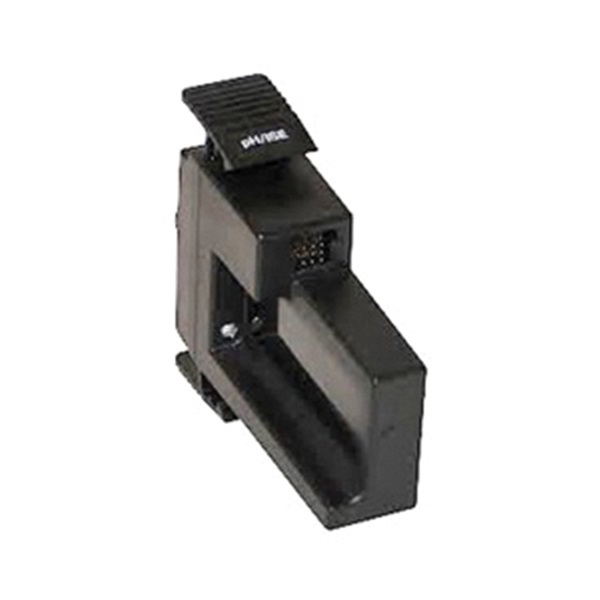

Orion™ Versa Star™ pH/mV/Relative mV/ORP Measurement Module, 12 L x 3 W x 9.5 cm H

Measurement Module, 12 L x 3 W x 9.5 cm H, pH/mV/(RmV)/ORP with Temperature Measuring Modes, -5 to 105°C/22 to 221°F Temperature Range, -2 to 20 pH Range, ±2000 mV Range, ±2000 Relative mV Range

  • Manufacturer Part No: VSTAR-PH
  • SECO Part No: 21-0730-05
  • Sold As:
  • Availability: loading

Add pH, mV, ORP and temperature measurement capabilities to your Thermo Scientific™ Orion™ Versa Star™ meter using the Thermo Scientific™ Orion™ Versa Star™ pH measurement module. Each Orion™ Versa Star™ meter has four channels that can be customized with interchangeable measurement modules. The Versa Star™ pH module offers up to a six point pH calibration with easy to follow onscreen instructions, automatic buffer recognition of NIST, DIN or user-defined buffer groups and calibration editing option to fix individual points without a full recalibration. Select from five Thermo Scientific™ Orion™ Versa Star™ measurement modules to customize the measurement capabilities of your Orion™ Versa Star™ meter. Measurement modules are interchangeable and can be added or removed from each Versa Star™ meter's four channels at any time.

Dimension : 12 L x 3 W x 9.5 cm H
Alarm Output : Set Point Alarm, High/Low Limit Alarm, Calibration Due Alarm
Calibration : pH with Calibration Editing Option, Relative mV (RmV), ORP and Temperature
Connector Type : Input: BNC (pH or ORP Electrode), Pin-tip (Reference Electrode), 8-pin MiniDIN (ATC Temperature Probe)
Includes : Versa Star pH Module and Printed Quick Start Guide
Isopotential Point : 7 pH (Adjustable)
Measuring Modes : pH/mV/Relative mV (RmV)/ORP with Temperature
Method : 10 per Channel with Password Protection
mV Accuracy : ±0.2 mV or ±0.05% of reading whichever is greater
mV Range : ±2000 mV
mV Resolution : 0.1 mV
Operating Temperature : 5 to 45°C (ambient)
ORP Range : ±2000 mV
pH Accuracy : ±0.002
pH Calibration Point : 1 to 6
pH Range : -2 to 20
pH Resolution : 0.1, 0.01, 0.001
Probe Type : pH Electrode, ORP Electrode, Reference Half-cell Electrode, ATC Temperature Probe
Relative Humidity Range : 5 to 85%, Non-condensing
Relative mV Range : ±2000 mV
Stability : Selectable Fast, Medium, Slow or Smart Stability Setting, Selectable off or Automatic Smart Averaging Setting
Temperature Accuracy : ±0.1°C
Temperature Probe Calibration : 1 Point Temperature Offset
Temperature Range : −5 to 105°C, 22 to 221°F
Temperature Resolution : 0.1°C, 0.1°F
Temperature Selection : Manual or Automatic with ATC Temperature Probe
  • Measure pH, mV, relative mV or ORP with temperature
  • Perform up to a six point pH calibration using automatic buffer recognition of NIST, DIN or user-defined buffer groups with choice to manually enter custom buffer values
  • Calibration editing option allows individual points to be fixed without a full recalibration
  • Customize measurements to show calibration history and pH electrode condition or simplify to show an extra large pH reading
  • Module offers a 3-year replacement warranty
