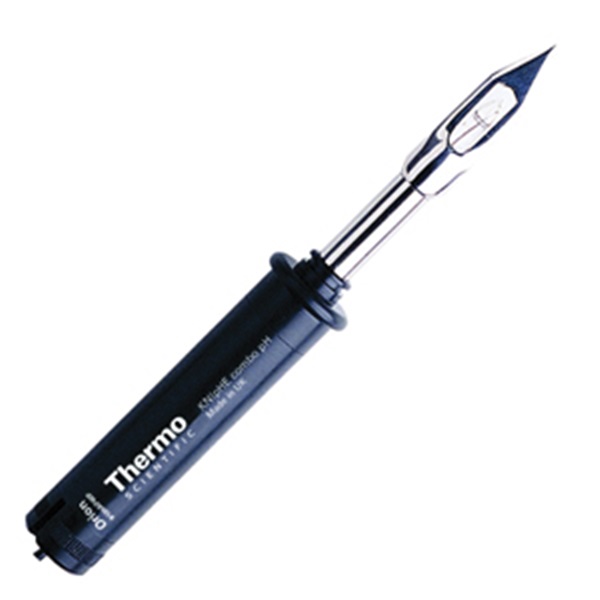

Orion™ KNIpHE™ Refillable Combination Double Junction Replacement pH Electrode, 16 dia x 215 mm L
Combination Replacement pH Electrode, 16 dia x 215 mm L, Stainless Steel Cutting Blade, 1 m L Cable, 0 to 14 pH Range, 0 to 60°C Operating Temperature, 0.02 pH Precision, Ceramic Junction, Waterproof BNC Connector Type
- Manufacturer Part No: 9121APWP
- SECO Part No: 21-0910-06
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
Spear tip pH electrodes can be used for piercing soft samples like cheese or fruit or cutting through tougher samples such as meat. All have refillable designs. They are available in single junction or double junction deigns which can be used with TRIS samples, proteins or sulfides. The ROSS spear tip electrode offers the proven accuracy and response that ROSS electrodes are know for and is a double junction electrode. The KNIpHE electrode has a glass electrode that is encased in a stainless steel housing with a cutting blade at the tip. It is used for tough samples such as meat. It has a double junction design.
| Diameter | : | 16 mm |
| Length | : | 215 mm |
| Material (ml/min) | : | Stainless Steel Cutting Blade |
| Cable Length | : | 1 m |
| Cap Size | : | 16 mm dia |
| Connector Type | : | Waterproof BNC |
| Filling Solution | : | 3 M KCl |
| For Use With | : | Orion™ pH Meter |
| Includes | : | Stainless Steel Cutting Blade, pH Electrode, Electrode Housing, 60 ml Bottle of Electrode Fill Solution |
| Internal Reference | : | Ag/AgCl |
| Junction | : | Ceramic |
| Operating Temperature | : | 0 to 60°C |
| pH Range | : | 0 to 14 |
| Precision | : | 0.02 |
- For meat, cheese and sludge where glass alone may break
-
-
