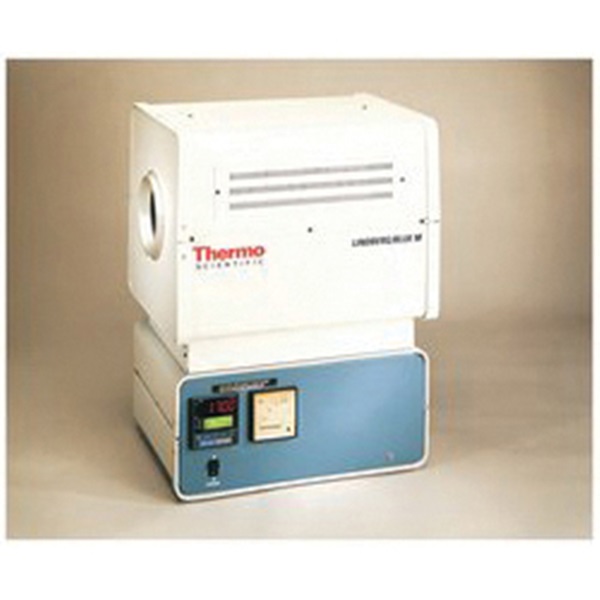

Lindberg/Blue M™ Temperature Controller Tube Furnace, 16 L x 22 W x 19" H
Tube Furnace, 16 L x 22 W x 19" H Exterior, 3" dia Process Tube, 12" Heated Zone, 50/60 Hz, Independent Temperature Control, 500 to 1700°C Temperature Range, 208/240 V, Temperature Controller, Double-shell Construction and Convection Cooling
- Manufacturer Part No: STF54434C
- SECO Part No: 18-2456-01
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
Achieve rapid heat up, recovery and cool down with a tube furnace that delivers outstanding energy release, reducing thermal process cycle time. Thermo Scientific™ Lindberg/Blue M™ 1700°C tube furnaces feature heating elements with unique right-angle bend and sidewall mounting to deliver exceptional energy release, reduced thermal process cycle time, and cost savings through quicker throughput. Thermo Scientific™ Moldatherm™ graduated-density insulation provides safety, performance and outstanding radial and linear temperature uniformity with resistance to thermal shock.
| Exterior Length | : | 16" |
| Exterior Width | : | 22" |
| Exterior Height | : | 19" |
| Diameter Process Tube | : | 3" |
| Heated Zone | : | 12" |
| Type | : | Temperature Controller |
| Temperature Control | : | Independent |
| Temperature Range | : | 500 to 1700°C |
| Hertz | : | 50/60 Hz |
| Voltage | : | 208/240 V |
- Heating elements tolerate rapid cycling over extended periods; elements are easily replaceable without the need to match resistance values
- Type "B" thermocouples assure accurate temperature measurement and long thermocouple life; 10' compensated lead wire with polarized plug included
- Moldatherm™ graduated density insulation adds to safety and performance by forming enhanced insulation protection between the high-temperature chamber and exterior cabinet surface
- Double-shell construction and convection cooling design reduces exterior surface temperature
- Removable louvered panels provide easier access to heating elements and thermocouple
