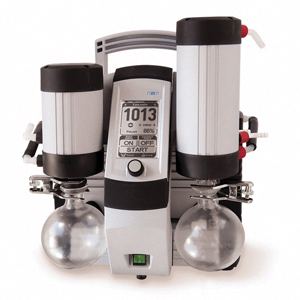

Laboport® PTFE-coated Diaphragm PPS Head Vacuum Pump System, 423 H x 366 W x 294 mm D
Vacuum Pump System, 423 H x 366 W x 294 mm D, PTFE-coated Diaphragm, PPS Head, FFPM Valve, Plastic-coated Glass Separators, 100 to 240 V, 50 to 60 Hz, 135 w, 1.7 A, 21 L/min at Atmospheric Pressure Flow Rate, Speed-controlled, Quiet Operation
- Manufacturer Part No: SC920 G
- SECO Part No: 21-4471-00
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
| Voltage | : | 100 to 240 V |
| Amperage | : | 1.7 A |
| Diaphragm Material | : | PTFE-coated |
| Flow Rate | : | 21 L/min |
| Head Material | : | PPS |
| Height | : | 423 mm |
| Hertz | : | 50/60 Hz |
| Length | : | 294 mm |
| Ultimate Vacuum | : | 2 mbar abs |
| Valve Material | : | FFPM |
| Wattage | : | 135 w |
| Weight | : | 15.2 kg |
| Width | : | 366 cm |
- Remote-controlled for safe operation from outside closed fume hoods
- Automatic, accurate recognition and monitoring of the boiling point using the integrated ramp function
- High recovery rates even with low boiling point solvents
- Integrated gas ballast valve
- Speed-controlled
- Quiet operation
- Optimized suction capacity
- PPS pump head combined with PTFE-coated diaphragm are ideal for aggressive/corrosive gases and vapors
- With overcurrent protection and main fuse
- Hose connections- ID 10 pneumatic, ID 8 for coolants, ID 6 for inert gas
- Gas ballast valve
- 500 ml Size of the separators
- Mini-USB connection
- 5 to 40°C Permissible gas and ambient temperature
- LCD display
- Wireless range- about 50 m without obstacles, about 10 m through walls
- Power supply- through integrated batteries or included power supply
- Battery service life- up to 12 hours
- Charging time- about 7 hours
- Operation - touchscreen/control knob
