Laboport® N 811 KTP
Share
  1. pin-int
Email Print

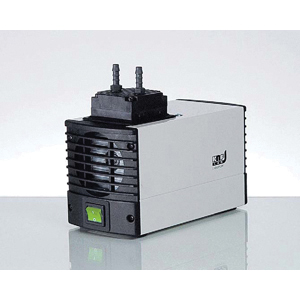

Laboport® PTFE-coated Diaphragm PPS Head Mini Vacuum Pump, 187 L x 90 W x 157 mm H

Vacuum Pump, Mini, 187 L x 90 W x 157 mm H, PTFE-coated Diaphragm, PPS Head, FFPM Valves, 115 V, 60 Hz, 1.6 A, 65 w, IP20 Motor Protection, 11.5 L/min Delivery Flow Rate, 30 psig Operating Pressure, 100% Oil-free Transfer, Environmentally Friendly

  • Manufacturer Part No: N 811 KTP
  • SECO Part No: 21-4431-09
  • Sold As:
  • Availability: loading

Series N811 diaphragm pumps are single-head, dry-running devices used in a wide range of laboratory applications. They transfer, compress and pump down without contamination. The heart of these very compact pumps is a KNF structured diaphragm. This patented diaphragm was stress-optimized using the finite elements method. As a result, we were able to make the pumps smaller while increasing the service life of the diaphragm. The pumps are available in various versions differing in the materials which contact the media.

Voltage : 115 V
Amperage : 1.6 A
Diaphragm Material : PTFE-coated
Flow Rate : 11.5 L/min
Head Material : PPS
Height : 157 mm
Hertz : 60 Hz
Length : 187 mm
Motor Protection : IP 20
Operating Pressure : 30 psig
Ultimate Vacuum : 218 Torr
Valve Material : FFPM
Wattage : 65 w
Weight : 5.52 lb
Width : 90 mm
  • 100% Oil-free transfer
  • Pure transferring, evacuation and compression of gases
  • Version for slightly aggressive or corrosive gases and vapors
  • Maintenance-free
  • Environmentally friendly
  • High level of gas tightness
  • With thermal switch and power fuse
  • 0.25" ID Connectors for tube
  • 5 to 40°C Permissible gas and ambient temperature
