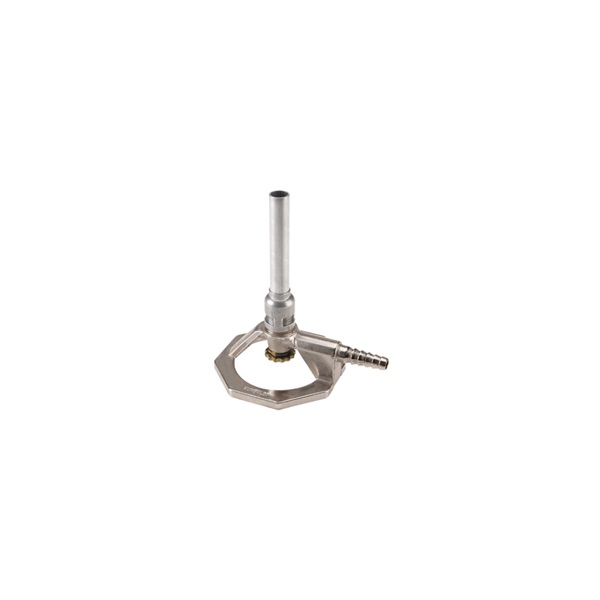

Humboldt General Purpose Tirrill Burner with LP Gas, 7320 BTU

Tirrill Burner, 10 OD x 162 mm H, LP Gas Type, 3 CFH, 7320 BTU Output, For Use with LP Gas, 5" Water Column Pressures for Artificial and Natural Burners, 11" Water Column Pressures for LP Burners

  • Manufacturer Part No: H-6225
  • SECO Part No: 10-9135-01
  • Sold As:
  • Availability: loading

These noiseless burners provide a clear flame of any desired height from 0.5" (12.7 mm) to 12" (305 mm), with separate control of both flame temperature and flame length. The burners incorporate threaded aluminum air control sleeves and precision machined, fine-pitch brass needle valves with internal stuffing box and self-sealing packings. Rustproof 3.5" (89 mm) octagon shaped, plated die-cast bases and aluminum mixing tubes are also utilized.

Height : 152 mm
Gas Type : LP
CFH : 3
BTU : 7320
For Use With : For Use with LP Gas
  • 5" water column pressures for artificial and natural burners
  • 11" water column pressures for LP burners
  • Inlet OD for all burners 0.312" serrated
  • pdf Catalog /ASSETS/DOCUMENTS/ITEMS/EN/H-5025.pdf
