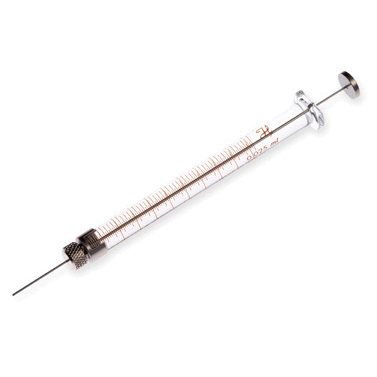

Hamilton® 1700 Series 1702 Model Removable Needle Valco VISF-1 Syringe, 25 µl, 22s ga
Valco VISF-1 Syringe, 25 µl, 0.006 ID x 0.028" OD Needle, 0.029 ID x 0.305" OD Barrel, Stainless Steel, Borosilicate Glass, PTFE, 1700 Series, 1702 Model, Gastight Type, Removable Needle Termination, 22s ga, 19.1 mm L Needle, 3 Point Style, Gas Sterilizable
- Manufacturer Part No: 80231
- SECO Part No: 17-1141-01
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
The 1700 series syringes are the gastight version of the original 700 series syringes. This series of syringes is ideal for dispensing volumes from 1 µl up to 500 µl. A variety of different terminations and needle options are available in this series. Syringes for Valco VISF-1 Injection Valves. These syringes have the Removable Needle (RN) termination. For more details on the terminations. The needles in this section are 19 mm in length and are point style 3.
| Valve Type | : | Valco VISF 1 Injection Valves |
| Volume | : | 25 µl |
| Syringe Type | : | Gastight |
| Syringe Series | : | 1700 |
| Termination | : | Removable Needle |
| Fluid Path | : | Stainless Steel, Borosilicate Glass, PTFE |
| Autoclavable | : | Yes |
| Model | : | 1702 |
| Gas Sterilizable | : | Yes |
| Gauge | : | 22s ga |
| Length | : | 19.1 mm Needle |
| Diameter | : | 0.006 ID x 0.028" OD Needle, 0.029 ID x 0.305" OD Barrel |
| For Use With | : | For Diluters/Dispensers, Autosamplers and Analyzers |
| Needle Type | : | Small RN |
| Point Style | : | 3 |
| Pressure | : | 1000 psi |
| Standard Needle Dead Volume | : | 0.42 µl |
| Temperature Range | : | 10 to 115°C |
- Use in diluters/dispensers
- Use in autosamplers and analyzers
- Pipetting of gases
- Sample injection in GC, LC and TLC
- Plungers for GASTIGHT® syringes are easily replaceable when your glass barrel is not broken
Specification Sheet
