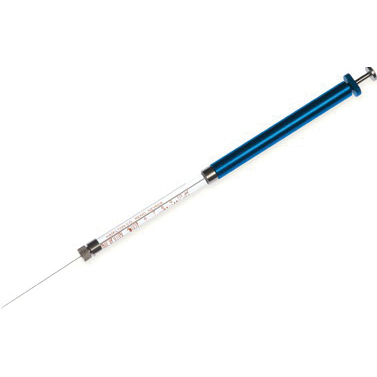

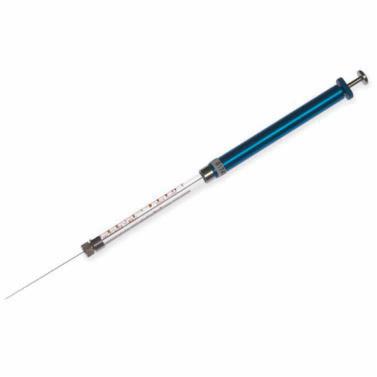

Hamilton® 801 Model 2 Point Style Microliter Syringe with Removable Needle, 51 mm L, 0.13 ID x 0.47 mm OD

Microliter Syringe, 10 µl, 51 mm L, 0.13 ID x 0.47 mm OD, 0.485 ID x 6.6 mm OD Barrel, 26s ga Gauge, 800 Series, 801 Model, 2 Point Style, Removable Needle Termination, SST, Borosilicate Glass Fluid Path

  • Manufacturer Part No: 84853
  • SECO Part No: 14-4225-07
  • Sold As:
  • Availability: loading

The 800 series syringes are the reinforced plunger version of the 700 series syringes. Attached to the flange of the syringe is a blue syringe holder. The syringe holder provides an area to hold the syringe that prevents heat transfer, dispense inaccuracies, and plunger blow outs. Additionally, it provides support 800 Series Syringes to small volume plungers that are prone to bending during injection. This series of syringes is ideal for dispensing volumes from 0.5 µl up to 250 µl.

Model : 801
Syringe Series : 800
Volume : 10 µl
Gauge : 26s ga
Needle Length : 51 mm
Needle Diameter : 0.13 ID x 0.47 mm OD
Needle Type : Small Removable Needle
Point Style : 2
Syringe Type : Microliter
Accuracy : ±1%
Autoclavable : Yes
Barrel Diameter : 0.485 ID x 6.6 mm OD
Fluid Path : Stainless Steel, Borosilicate Glass
Gas Sterilizable : Yes
Material (ml/min) : Reinforced Stainless Steel Fitted Plunger
Pressure : 2000 psig
Standard Needle Dead Volume : 0.64 µl
Temperature Range : 10 to 115°C
Termination : Removable Needle
  • No dead volume connection
  • Use with small hub needles (2.5 to 100 µl) or Large Hub needles (250 to 10 ml)
  • 10 to 12° Sharp, beveled, curved non-coring needle
