DWK Life Sciences (Kimble) Ultra-Ware® 953770-0090
Share
  1. pin-int
Email Print

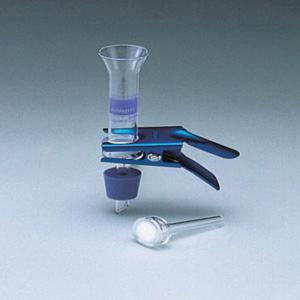

DWK Life Sciences (Kimble) Ultra-Ware® Microfiltration Assembly with Replaceable Fritted Glass Support, 350 mm H

Microfiltration Assembly, 350 mm H, Borosilicate Glass, 1000 ml Funnel, 160 mm W Clamp, 90 mm dia Filter, 70 mm dia Prefilter, The Funnel is Graduated From 300 to 1000 ml in 50 ml Increments, With Replaceable Fritted Glass Support

  • Manufacturer Part No: 953770-0090
  • SECO Part No: 953770-0090
  • Sold As:
  • Availability: loading

The 90 mm vacuum microfiltration assemblies are designed for large sample volumes or samples with high particulate loads that would tend to clog a 47 mm dia filter. The assembly with replaceable fritted glass support is used for general filtration.

Funnel Capacity : 1000 ml
Height : 350 mm
Filter Diameter : 90 mm
Material (ml/min) : Borosilicate Glass
Clamp Width : 160 mm
  • Filtration rates are up to four times faster than 47 mm filters

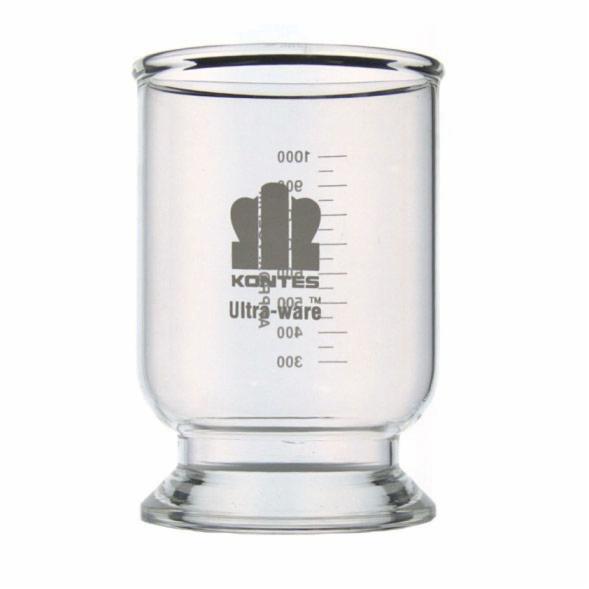

  • The funnel is graduated from 300 to 1000 ml in 50 ml increments
  • Maximum funnel capacity is 1100 ml
  • Prefilter size is 70 mm diameter, and the approximate filter area is 38.5 cm2

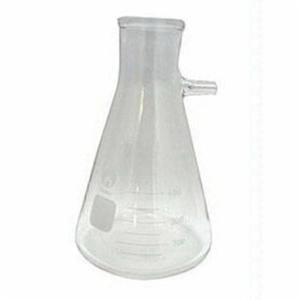

  • Connection to our 1 L filtration flask (available as an accessory) is made with a #8 silicone stopper
  • Unit is supplied with a 40 to 60 µ porosity fritted glass disc, a 90 mm glass support base, a 1000 ml graduated funnel, an anodized aluminum clamp and a #8 silicone stopper
  • The fritted glass support disc can be replaced if it becomes clogged or exchanged if sample-to-sample cross-contamination is a concern
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP type I and ASTM E438, type I, class A requirements
