Caframo High Speed Collet Set, 16 dia x 260 mm L
High Speed Collet Set, 16 dia x 260 mm L Shaft, 316 Stainless Steel, Electropolished 316 Stainless Steel, Left Hand Blade Rotation, 1800 to 6000 rpm Speed Range, 8 mm Impeller Bore, Includes A163-40 mm, A164-48 mm, A165-64 mm Blade Diameter
- Manufacturer Part No: A600SET
- SECO Part No: CAF-A600SET
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :

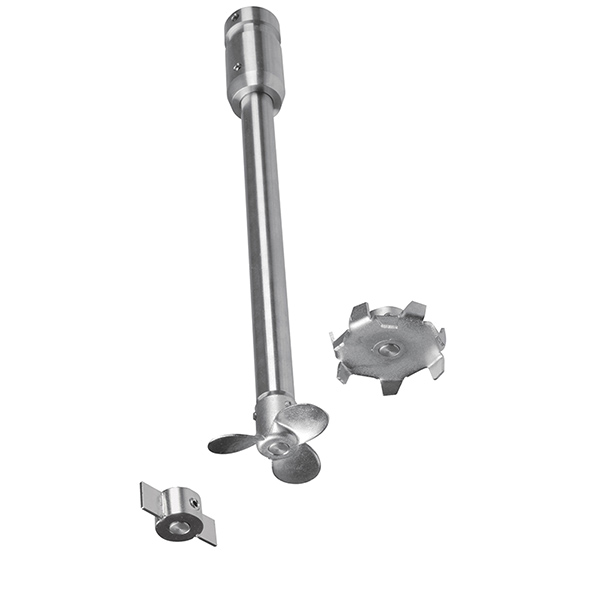

Achieve greater stability stirring at speeds 1800 to 6000 rpm. Set includes collet, 16 mm shaft with an end turned down to 8 mm, and three impeller blades with 8 mm bores, all of 316 stainless steel. Shaft and blades have electropolished finish. Set includes straight blade A163, dispersion blade A164, and pitched blade propeller A165. Tools and hardware are included for installation to a 13 mm motor output shaft of overhead stirrer. To be used with BDC3030 or BDC6015 overhead stirrers.
| Shaft Diameter | : | 16 mm |
| Shaft Length | : | 260 mm |
| Fits | : | 13 mm Motor Shaft |
| Blade Diameter | : | A163 - 40 mm, A164 - 48 mm, A165 - 64 mm |
| Weight | : | 660 g |
| Blade Rotation | : | Left Hand |
| Collet Material | : | 316 Stainless Steel |
| Impeller Bore | : | 8 mm |
| Shaft Material | : | Electropolished 316 Stainless Steel |
| Speed Range | : | 1800 to 6000 rpm |
- Chuck key or allen key attaches collet to output shaft
- Shaft has turned down end to 8 mm
- Greater stability for extended stirring at higher speeds
- No additional tools required
- Customize to any impeller with 8 mm
