XPert™ 3950601
Share
  1. pin-int
Email Print

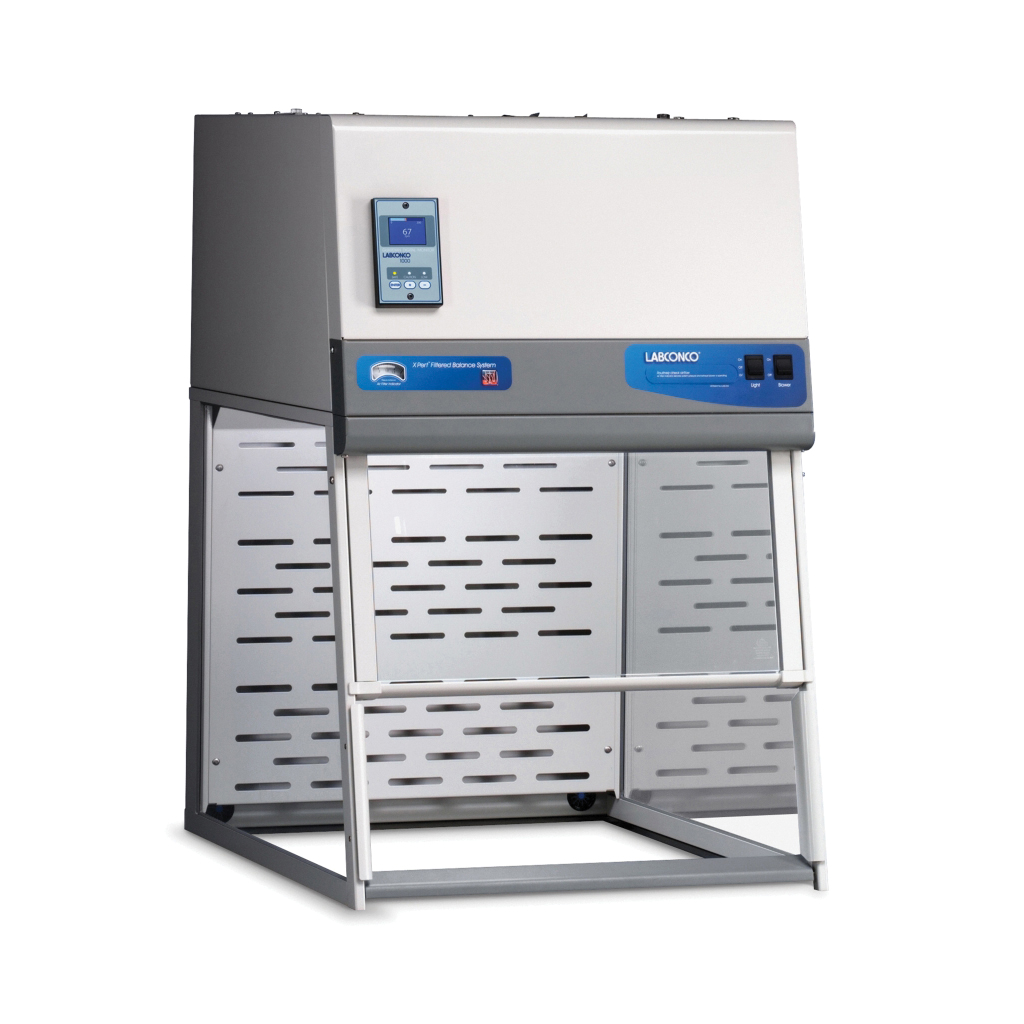

XPert™ Filtered Balance System, 6' Nominal Width, 46.3 H x 72 W x 29" D

Filtered Balance System, 46.3 H x 72 W x 29" D Exterior, 32 H x 69.6 W x 23.4" D Interior, Glacier White/Gray, Aluminum Frame, Steel Plenum/Baffle, Dry Powder Epoxy-coated Finish, 100 to 115 V, 60 Hz Electrical Requirements

  • Manufacturer Part No: 3950601
  • SECO Part No: 3950601
  • Sold As:
  • Availability: loading

XPert filtered balance systems provide user protection by keeping powders and particulates contained during weighing procedures. The built-in blower and exhaust HEPA filter mounted in the upper plenum take up less space than a separate exhauster would require, and isolation supports minimize blower vibration. Since HEPA filtered air is returned to the laboratory, these vented balance enclosures offer the added benefit of low installation costs and require no ducting to the outside. Interior dimensions accommodate large micro and analytical balances. Containment-enhancing features ensure that potent powders frequently found in pharmaceutical, dry chemical, mold and asbestos weighing operations are kept away from the operator.

Height : 46.3"
Width : 72"
Depth : 29"
Inside Height : 32"
Inside Width : 69.6"
Inside Depth : 23.4"
Color : Glacier White, Gray
Exhaust Volume : 580 CFM at 100 fpm, 465 CFM at 80 fpm, 350 CFM at 60 fpm
Filter Type : Built-In HEPA Filter
Finish : Dry Powder Epoxy-coated
For Use With : For Large Micro and Analytical Balances
Hertz : 60 Hz
Includes : Guardian Airflow Monitor
Lighting : Fluorescent Lamp
Material (ml/min) : Aluminum (Frame), Steel (Plenum, Baffle)
Noise Level : 48 to 66 dBA
Nominal Width : 6'
Number of Ports : 2
Sash Opening : 12" H
Style : Filtered
Type : Balance Enclosure
Voltage : 100 to 115 V
  • Deep 23 or 30" interior to accommodate large micro and analytical balances
  • Ergonomic air foil with aerodynamic clean-sweep airflow openings - upper dilution air supply, upper containment sash foil, zone-perforated rear baffle, side-entry air foils
  • Exhaust HEPA filter, 99.99% efficient on particles 0.3 µm in size
  • True bag-in/bag-out filter disposal system
  • Built-in blower with dynamically-balanced, vibration-isolated motorized impeller
  • Intrinsically-safe, negative pressure design
  • Minihelic pressure gauge
  • Space-saving design, no separate filtered exhauster is required
  • Upper diffuser screen
  • Quiet operation from 48 to 66 db(A) depending on airflow
  • Glacier white and gray, dry powder epoxy-coated aluminum frame and steel rear plenum and baffle; no unreliable plastic-to-plastic bonding is used
  • Pre-wired fluorescent lamp and switches for blower and light
  • Speed control
  • 0.25" Thick tempered safety glass front sash and sides
  • 9.4 or 12" High sash opening
  • Ergonomic 10° angled and hinged sash that pivots upward, locks for loading and has a wiping seal to contain contaminants
  • Contains built-in blower and exhaust HEPA filter
  • ANSI Z9.5, CAN/CSA C22.2, ETL, Modified ASHRAE 110, SEFA 1, UL Certified
