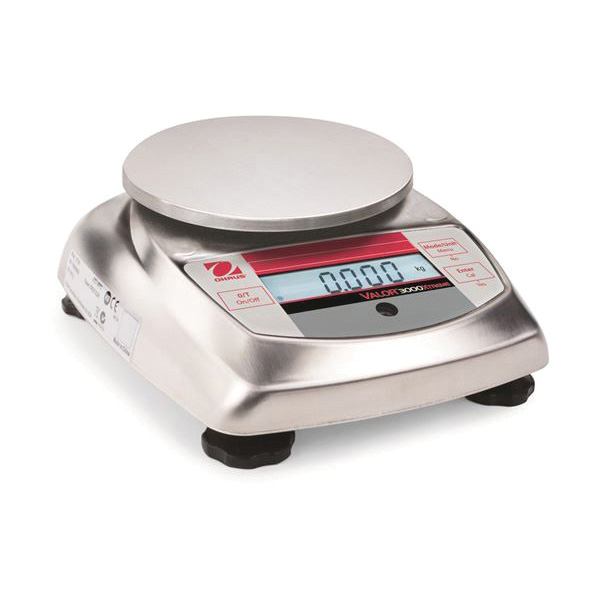

The Valor 3000 Xtreme compact precision scale continues the Ohaus® tradition of building high quality, durable products that are easy to use and hard to beat. The Valor 3000 Xtreme takes these Ohaus® virtues to a new level by offering high precision 40000d readability, durability, and ease-of-use, encased in a sleek and fully stainless steel compact housing. Washdown versions ensure that the Valor 3000 Xtreme meets the needs of even the most demanding environments.
Dimension
|
:
|
218 L x 186 W x 77 mm H
|
Capacity
|
:
|
500 g
|
Model
|
:
|
V31X501
|
Material (ml/min)
|
:
|
T304 Stainless Steel
|
Weight
|
:
|
1.2 kg
|
Battery Life
|
:
|
120 Hours
|
Battery Type
|
:
|
4 x 1.5 V "C" Batteries
|
Calibration Mass
|
:
|
500 g
|
Calibration Type
|
:
|
Digital External Span Calibration
|
Connectivity
|
:
|
SmarText™ Software
|
Display Type
|
:
|
7 Segment 6 Digit 0.78" High LCD with White LED Backlight
|
Draftshield
|
:
|
No
|
Electrical Requirement
|
:
|
9 to 12 VDC, 0.5 A, 100 to 120 VAC, 50/60 Hz
|
Linearity
|
:
|
±0.1 g
|
Operating Condition
|
:
|
0 to 40°C, 10 to 95% RH, Non-condensing, Upto 4000 m Above Sea Level Altitude
|
Overload Capacity
|
:
|
10 Times The Rated Capacity
|
Platform Material
|
:
|
Stainless Steel
|
Platform Dimension
|
:
|
120 mm dia
|
Power Source
|
:
|
AC Adapter or Battery Powered
|
Resolution
|
:
|
0.1 g
|
Repeatability
|
:
|
0.1 g
|
Stabilization Time
|
:
|
=3 sec
|
Tare Range
|
:
|
Full Capacity by Subtraction
|
Weighing Unit
|
:
|
g, kg, lb, oz, lb:oz
|
- Extreme design - full stainless steel housing with added chemical resistance and removable stainless steel weighing pan are durable and easy to clean (NEMA 4X/IP65 water resistant models available)
- Extreme protection - technically advanced overload protection rated at 10X capacity is ideal for tough environments where capacity is frequently exceeded
- Extreme performance - the valor 3000 Xtreme offers resolutions up to 40000d and 0.01 g, providing precise measurements in demanding environments
- User adjustable filtering and stability settings allow the Valor 3000 Xtreme to operate accurately in drafty and unstable conditions
- Extremely friendly - Ohaus® SmarText™ user interface utilizes a bright backlit LCD and simple text prompts to guide users through application use and scale setup, making the Valor 3000 Xtreme very easy to use
- The included AC adapter provides continuous power, and the convenient stow-away plug keeps moisture out when not in use
- Weighing results are clearly shown on the bright backlit display with large easy-to-read digits
- A glance at the level bubble ensures easy leveling and superior stability
- Ohaus QuadraStance® offers four rugged and slip-resistant adjustable feet to help prevent slippage on wet or uneven surfaces
- Ohaus® easy-to-use interface guides you through setup and applications such as percentage weighing and specific gravity modes with a simple push of the button
- Application modes: Simple weighing, percent weighing, combined zero/tare, specific gravity (S)
- Keyboard- three mechanical switches (1 left, 2 right)
- Display indicators: Center of zero, stability, over/under load, weighing unit and battery status
- Auto-zero tracking - off, 0.5, 1 or 3 divisions
- Selectable environmental settings, fast stabilization with selectable auto-tare
- Integrated level bubble and adjustable feet
- Selectable auto-off, selectable weighing unit, selectable power-up unit, AC power adapter included
- NSF Listed, ANSI 169-2005, USDA/AMS Accepted to NSF/3-A 14159-1, Meets HACCP Conformity, CE Listed, Meets AS/NZS4251.1 Emission/AS/NZS4252.1 Immunity, FCC Class B Part 15, cULus Electrical/Emissions, ISO 9001:2008
