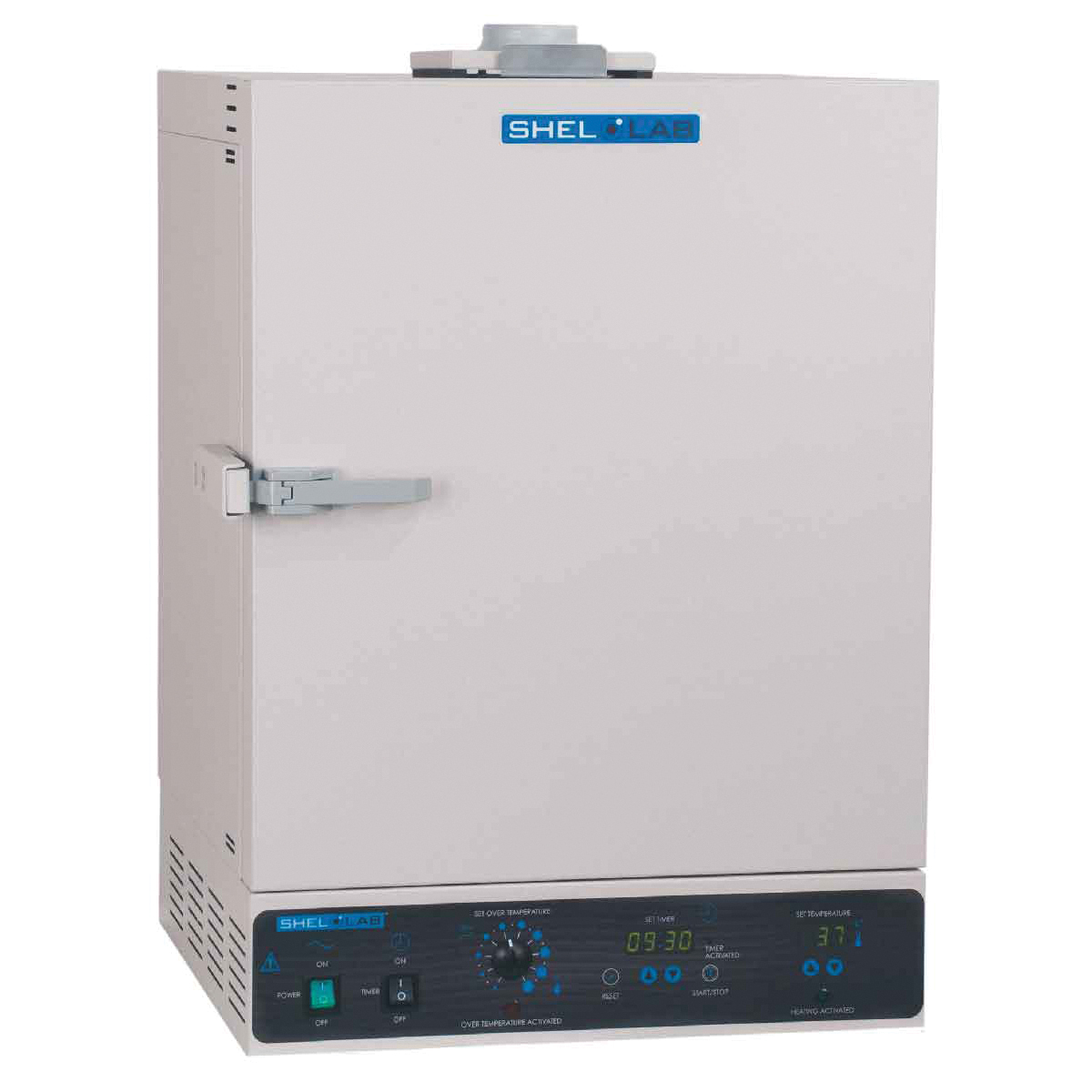

Sheldon Mechanical Convection Laboratory Oven, 39.4 L, 800 H x 577 W x 596 mm D Exterior

Laboratory Oven, 39.4 L, 800 H x 577 W x 596 mm D Exterior, 430 Stainless Steel Interior, Painted Cold Roll Steel Exterior, 368 H x 307 W x 349 mm D Interior, Ambient 20 to 306°C Operating Temperature, Digital Controller

  • Manufacturer Part No: SMO1
  • SECO Part No: SL-1330FM
  • Sold As:
  • Availability: loading

The SMO1 has a quick ramp-up time to 306°C for faster cycle times. This unit includes an advanced PID temperature control system for sensitive response. These ovens are recommended for critical and analytical use in laboratory and pilot plant product research. Typical applications for the oven include aging, asphalt testing, curing, drying, pre-heating, conditioning and life cycle testing. This unit is equipped with a stainless steel interior for long life operation and easy cleaning. Its triple wall construction minimizes external wall temperature which meets CE requirements to keep workspaces cool. The SMO1's forced air ovens deliver precise uniformity, air distribution and the peace of mind expected of the Shel Lab brand.

Capacity : 39.4 L
Exterior Dimension : 800 H x 577 W x 596 mm D
Interior Dimension : 368 H x 307 W x 349 mm D
Temperature Range : 20 to 306°C
Voltage : 110 to 120 VAC
Amperage : 12 A
Includes : 2 Shelves, 8 Shelf Clips, 4 Leveling Feet, 1 Power Cord
Controller Type : Digital
Display Resolution : 0.1°C
Exterior Material : Painted Cold Roll Steel
Frequency : 50/60 Hz
Interior Material : 430 Stainless Steel
Maximum HVAC Load : 67.5K BTUs/Hour
Midrange Temperature Stability : 0.2°C
Midrange Temperature Uniformity : 2.3°C
Safety Certification : UL 61010-1, EN 61010-1, CSA 61010-1, CE
Shelf Dimension : 302 W x 345 mm D
  • Embedded microprocessor control with countdown timer
  • Horizontal forced airflow
  • 1.75" Access port
  • Ideal for industrial, analytical and general laboratory applications
  • Exhaust port, 3" diameter, adjustable, with external connection to customer-supplied vent for effluent exhaust if required
  • 5-15P NEMA plug
  • Integrated control panel
  • 24-month Limited warranty
  • UL/CSA, CE, DIN 12880 Compliant
