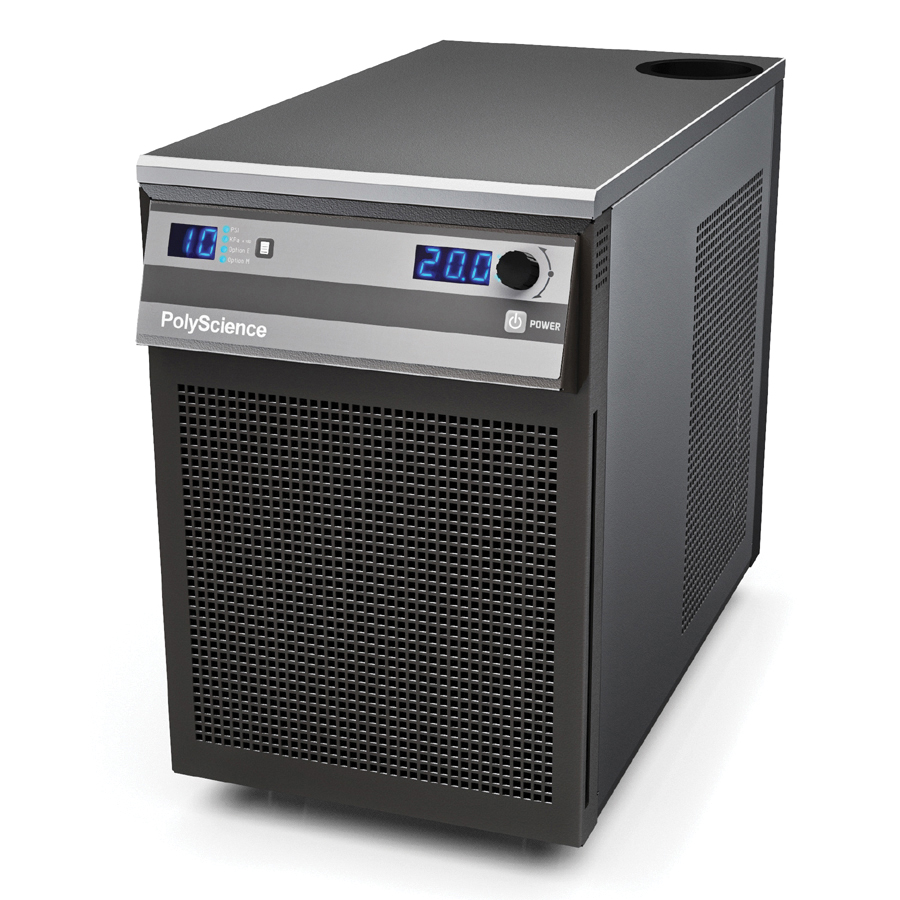

PolyScience 6100 Series 1 HP Positive Displacement Pump Chiller, 60 Hz
Chiller, 4.2 L, 27.6 L x 14.5 W x 22.6" H, Positive Displacement Pump, -10 to 40°C Working Temperature, ±0.1°C Temperature Stability, 0.5" (F) NPT Process Connections, 1 hp, 208 to 230 VAC, 60 Hz, 12.2 A, Large Dual LED Display
- Manufacturer Part No: 6160P41A130D
- SECO Part No: 6160P41A130D
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
| Cooling Capacity | : | 450 w at -10°C, 725 w at -5°C, 1000 w at 0°C, 1925 w at 10°C, 2900 w at 20°C, 3103 w at 30°C, 3196 w at 40°C |
| Length | : | 27.6" |
| Width | : | 14.5" |
| Height | : | 22.6" |
| Model | : | 6106P |
| Compressor Power | : | 1 Hp |
| Compressor Size | : | 1 Hp |
| Display | : | LED |
| Electrical Requirement | : | 208 to 230 VAC, 60 Hz, 12.2 A, Single Phase |
| Flow Rate | : | 3.5 gpm at 0 PSI |
| Included Hardware | : | Two Sets of Inlet/Outlet Adapters: 0.5 Male NPT, 0.62 Male NPT |
| Maximum Ambient Temperature | : | 35°C |
| Maximum Pressure | : | 100 psi |
| Maximum Pressure Flow Rate | : | 3.5 gpm |
| Process Connections | : | 0.5" (F) NPT |
| Pump Speed | : | Constant, Single Speed |
| Pump Type | : | Positive Displacement |
| Refrigerant | : | R134a |
| Regulatory Approvals | : | TUV |
| Reservoir Capacity | : | 4.2 L |
| Temperature Calibration Capability | : | 1-point |
| Temperature Stability | : | ±0.1°C |
| Working Temperature Range | : | -10 to 40°C |
- Large, dual display present temperature and pressure or flow rate simultaneously
- Compact, portable design takes up less floor space
- Cooling at ambient temperatures as high as 30°C
- User-adjustable temperature, pressure, and flow rate alarms
