Ohaus® 80253298
Share
  1. pin-int
Email Print

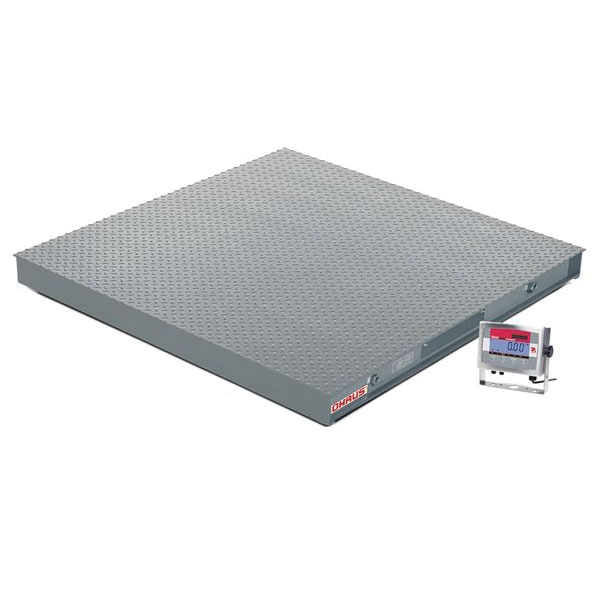

Ohaus® VX Series VX32XW10000X Model Economical Painted Steel Floor Scale, 5 L x 5' W x 4.5" H

Floor Scale, 5 L x 5' W x 4.5" H, 5 L x 5' W Painted Steel Diamond Plate Platform, 10,000 lb Capacity, VX32XW10000X Model, VX Series, LCD With White LED Backlight, 58 Hours with Rechargeable Battery, 125% Overload Protection

  • Manufacturer Part No: 80253298
  • SECO Part No: OHS-80253298
  • Sold As:
  • Availability: loading

Ohaus® VX Series of floor scales is designed to minimize distortion under heavy loads and ensure years of dependable performance. Complete with a durable T32XW washdown indicator, the VX Series displays results in lb. or kg, includes a counting mode, geographical gravity correction for quick adjustment to local conditions, and is NTEP certified (2500L and 5000L models only).

Capacity : 10,000 lb
Length : 5'
Width : 5'
Height : 4.5"
Series : VX Series
Model : VX32XW10000X
Application : For Weighing, Parts Counting
Battery Life : 58 Hours with Rechargeable Battery
Communication : RS232 (Included)
Construction : NEMA 4X/IP65 Stainless Steel Indicator With Hinged Front-cover, 5 mm Fixed Top Plate, Wall Bracket, Epoxy Painted Steel Platform And Frame, NEMA 4/IP67 Plastic Junction Box With Side Access, 4 IP67 Ntep Alloy Steel Load Cells, Painted Steel Ramps (Accessories Sold Separately)
Display : LCD with White LED Backlight
Net Weight : 508 lb
Platform Construction : Painted Steel Diamond Plate
Platform Dimension : 5 L x 5' W
Power : AC Adapter, Rechargeable Battery
Protection Rating : IP 65
Resolution : 2 lb
Tare Range : To Capacity by Subtraction
Working Environment : 14 to 104°F/-10 to 40°C, 85% RH, Non-condensing
  • Economical floor scale for basic washdown industrial applications
  • Backlit liquid crystal display (LCD), 3 color checkweighing LEDs
  • Power cord (included) or rechargeable battery (included)
  • Easy access communication port with RS232 interface (included)
  • Construction - NEMA 4X/IP65 stainless steel indicator with hinged front-cover, 5 mm fixed top plate, wall bracket, epoxy painted steel platform and frame, NEMA 4/IP67 plastic junction box with side access, 4 IP67 NTEP alloy steel load cells, painted steel ramps (accessories sold separately)
  • 125% Overload protection
  • NTEP Certified
