Laboport® N 816.1.2 KTP
Share
  1. pin-int
Email Print

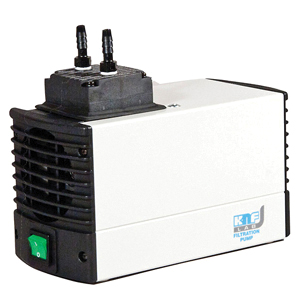

Laboport® PTFE-coated Diaphragm PPS Head Vacuum Pump, 361 L x 102 W x 141 mm H

Vacuum Pump, 361 L x 102 W x 141 mm H, PTFE-coated Diaphragm, PPS Head, FFPM Valve, 115 V, 60 Hz, 0.6 A, 100 w, 30 L/min Delivery Flow Rate, 160 mbar abs Ultimate Vacuum, 0.5 bar g Operating Pressure, Oil-free Transfer, Environmentally Friendly

  • Manufacturer Part No: N 816.1.2 KTP
  • SECO Part No: 21-4431-06
  • Sold As:
  • Availability: loading

Series N816.1.2 diaphragm pumps are double-head, dry-running devices used in a wide range of laboratory applications. They transfer and pump down without contamination. The heart of these very compact pumps is a KNF structured diaphragm. This patented diaphragm was stress-optimized using the finite elements method. As a result, we were able to make the pumps smaller while increasing the service life of the diaphragm. The pumps are available in various versions differing in the materials which contact the media.

Voltage : 115 V
Amperage : 0.6 A
Diaphragm Material : PTFE-coated
Flow Rate : 30 L/min
Head Material : PPS
Height : 141 mm
Hertz : 60 Hz
Length : 361 mm
Motor Protection : IP 20
Operating Pressure : 0.5 barg
Ultimate Vacuum : 160 mbar
Valve Material : FFPM
Wattage : 100 w
Weight : 3.95 kg
Width : 102 mm
  • 100% Oil-free transfer
  • Pure transferring, evacuation and compression of gases
  • Version for slightly aggressive or corrosive gases and vapors
  • Maintenance-free
  • Environmentally friendly
  • High level of gas tightness
  • With thermal switch and power fuse
  • 0.25" ID Connectors for tube
  • 5 to 40°C Permissible gas and ambient temperature
  • pdf Brochure /ASSETS/DOCUMENTS/ITEMS/EN/N816-1-2KTP.pdf
