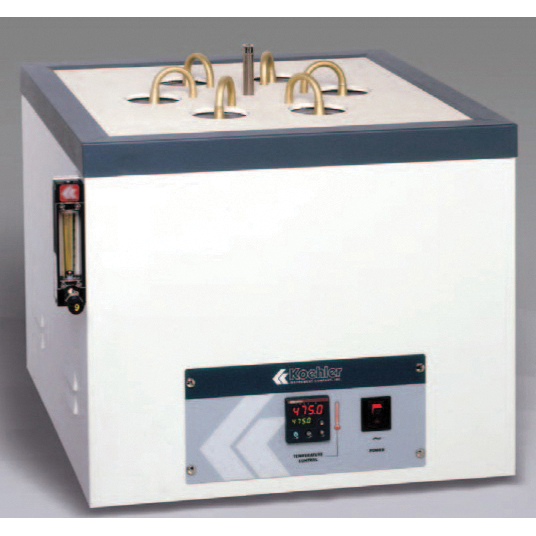

Koehler Instrument Existent Gum Evaporation Bath, 6-Unit with Superheater, 220 to 240 V 50/60 Hz
Existent Gum Evaporation Bath, 71 L x 51 W x 41 cm H, 6-unit with Superheater, 220 to 240 V 50/60 Hz, 475°F Maximum Temperature, ±1°F Temperature Control Stability, 0 to 3000 w Heater Range, to Test for Gum Content, Built-in Pressure Regulators
- Manufacturer Part No: K33700
- SECO Part No: 20-9745-01
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
Evaporates aircraft turbine fuel and motor and aviation gasoline samples under controlled conditions in accordance with ASTM specifications. Consists of a high temperature evaporation bath with 100 ml test beakers and, for aircraft turbine fuels, a steam generator and steam superheater. Electrically heated baths for determining existent gum in aircraft turbine fuels by steam-jet evaporation and in motor and aviation gasolines by air-jet evaporation. Fully insulated, aluminum block design assures safe, efficient high temperature operation. Equipped with air/steam pressure regulator with gauge and a flowmeter for adjusting air flow per ASTM specifications. Stainless-steel jets deliver air or steam flow to the test wells through removable brass conical adapters. Microprocessor PID control provides quick temperature stabilization without overshoot, and the bath is protected by an overtemperature control circuit that interrupts power should bath temperature exceed a programmed cut-off point. Dual LED displays provide actual and setpoint temperature values in °C/°F format. Communications software (RS232, etc.), ramp-to-set and other enhanced features are available as extra cost options. Contact your Koehler representative for information. With built-in superheater-six-unit bath with a built-in thermostatically controlled superheater which delivers dried steam to the bath inlet for steam-jet method testing of aircraft turbine fuels. Has digital indicating solid state bath temperature control with digital setpoint and display. Test method: Gum formed during fuel storage can deposit on induction system surfaces, intake valves, stems and guides. o test for gum content, a 50 ml sample is evaporated in an aluminum block bath for a specified period under controlled conditions of temperature and flow of air (aviation and motor gasolines) or steam (aircraft turbine fuel).
| Testing Capacity | : | 6 Sample Beakers |
| Dimension | : | 71 L x 51 W x 41 cm H |
| Heater Range | : | 0 to 3000 w |
| Maximum Temperature | : | 475°F |
| Temperature Control Stability | : | ±1°F |
| Control Cabinet Size | : | 23 L x 20 W x 17 cm H |
| Electrical Requirement | : | 220 to 240 V 50/60 Hz, Single Phase, 13.6 A |
| Includes | : | Conical Brass Adapters for Air/Steam Jet |
- Conforming to ASTM D381 and related specifications
- Choice of three-unit and six-unit models
- Available with built-in steam superheater
- Microprocessor programmable high accuracy temperature control
- Built-in pressure regulators and air flowmeters
- Six-unit bath without built-in superheater
- Bath configuration machined aluminum block with multiple cartridge heaters
- ASTM D381, IP 131, ISO 6246, DIN 51784, FTM 791-3302, NF M 07-004
