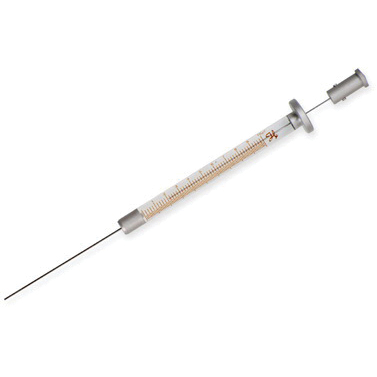

CTC/LEAP 701 Model 3 Point Style C-line Microliter Syringe with Fixed Needle, 51 mm L, 0.13 ID x 0.711 mm OD
Microliter Syringe, 10 µl, 51 mm L, 0.13 ID x 0.711 mm OD, 6.6 mm OD Barrel, 22s ga Gauge, 700 Series, 701 Model, 3 Point Style, Fixed Needle Termination, C-line Type, SST, Borosilicate Glass Fluid Path, Stainless Steel Plunger
- Manufacturer Part No: 203073
- SECO Part No: HC-203073
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
Microliter syringes are used with liquid only. They feature a stainless steel plunger which is individually fitted to the glass barrel. The result is a liquid tight seal with nearly frictionless movement. These syringes are ideal for organic samples that are not prone to precipitation, crystallization, or bonding with glass. Plungers and barrels are not interchangeable or replaceable. The 700 series syringe is the original hand-fitted Hamilton® syringe. The stainless steel plunger is manufactured to fit the glass barrel with a tolerance less than three thousandths of a millimeter, resulting in unsurpassed syringe life. This series of syringes is ideal for dispensing volumes from 0.5 µl up to 500 µl. A variety of different terminations and needle options are available.
| Autoclavable | : | No |
| For Use With Equipment | : | Agilent 1290,PAL LC HTC and HTS,Waters 2777,Dionex UltiMate 3000 |
| Volume | : | 10 µl |
| Termination | : | Fixed Needle |
| Syringe Type | : | Microliter |
| Syringe Series | : | 700 |
| Needle Type | : | Cemented |
| Gauge | : | 22s ga |
| Accuracy | : | ±1% |
| Barrel Diameter | : | 6.6 mm OD |
| Fluid Path | : | Stainless Steel, Borosilicate Glass |
| Gas Sterilizable | : | Yes |
| Material (ml/min) | : | Stainless Steel Plunger |
| Model | : | 701 |
| Needle Diameter | : | 0.13 ID x 0.711 mm OD |
| Needle Length | : | 51 mm |
| Point Style | : | 3 |
| Pressure | : | 2000 psig |
| Standard Needle Dead Volume | : | 1.13 µl |
| Temperature Range | : | 20 to 50°C |
| Type | : | C-line |
- Found on CTC C-line and X-type syringes
- Blunt, electro-polished
