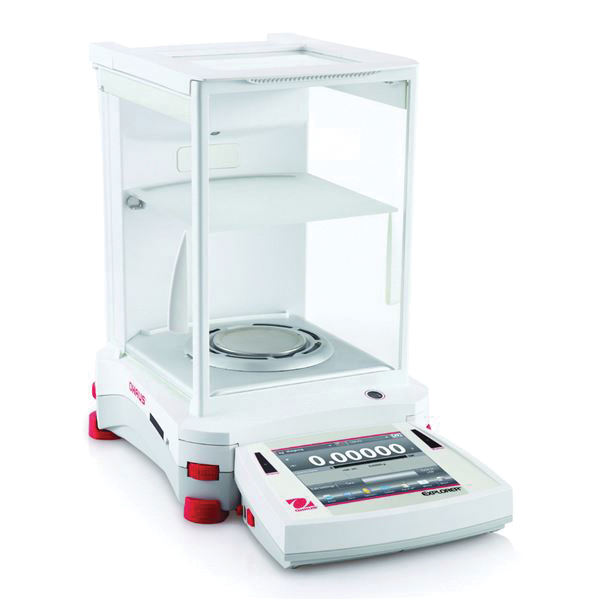

Explorer® EX225D Model Semi-micro Balance, 120 g/220 g, 0.01 mg/0.1 mg Resolution

Semi-micro Balance, 120 g/220 g, 393 H x 230 W x 350 mm D, Metal Base, ABS Housing, 80 mm dia Stainless Steel Pan, 0.01 mg/0.1 mg Readability, 0.1 mg Repeatability, ±0.1 mg Linearity, =8 sec/=3 sec Stabilization Time, EX225D Model

  • Manufacturer Part No: 30139512
  • SECO Part No: OHS-30139512
  • Sold As:
  • Availability: loading

When laboratory work and research requires accuracy to the hundred-thousandth, there is simply no room for error. The Explorer® series of semi-micro balances has been designed with the technology to ensure that your very specific weighing results are accurate. Sophisticated laboratories requiring accuracy and looking for innovative technology to obtain measurement results can find both in Explorer® semi-micro balances. AutoCal™ fully-automatic internal calibration system, fast stabilization time, four touchless sensors, built-in ionizer with automatic door models, up to 14 operating languages, OIML models available, save to USB function, menu lock switch, security bracket, integral weigh below hook for below balance weighing applications, removable stainless steel weighing platform, stability indicator, overload and underload indicators, auto standby.

Capacity : 120 g/220 g
Dimension : 393 H x 230 W x 350 mm D
Pan Size : 80 mm dia
Material (ml/min) : Metal Base, ABS Housing
Resolution : 0.01 mg, 0.1 mg
Repeatability : 0.015 mg, 0.1 mg
Pan Material : Stainless Steel
Linearity : ±0.1 mg
Calibration Type : Internal AutoCal™ Automatic Calibration
Stabilization Time : =8 sec, =3 sec
Weighing Unit : g, mg, kg, ct, gn, oz, ozt, lb, dwt, N, mom, tical, msg, tola, baht, hkt, sgt, twt, Custom Units 1, Custom Unit 2, Custom Unit 3
Display Type : 5.7" Full-color Touchscreen VGA
Operating Condition : 10 to 30°C, 85% RH, Non-condensing
Connectivity : RS232, USB, USB Host, Ethernet, GLP/GMP Data Output with Real-time Clock
Electrical Requirement : Input: 100 to 240 VAC, 0.6 A, 50 to 60 Hz, Output: 12 VDC, 1.5 A
Weight : 15.4 lb
Calibration Mass : 100g, 150 g, 200 g (Span)
Draftshield : Yes
Minimum Weight : 20 mg
Model : EX225D
Power Source : AC Adapter
Sensitivity Temperature Drift : 0.5 ppm/°C
Storage : 10 to 60°C, 10 to 90% RH, Non-condensing
Tare Range : To Capacity by Subtraction
With : In-use Cover, Auxiliary Display Model as an Accessory
  • Geared for high-performance with up to 0.01 mg readability and capacities up to 220 g
  • The AutoCal™ internal calibration system ensures accuracy of results in applications that require high precision
  • Equipped with a color touchscreen display that enhances the user-experience
  • In addition, touchless sensors, automatic draftshield doors (on select models) and ionizer ensure the integrity of results
  • SmarText™ 2.0 software, intuitive icon-based navigation, 99 item library, 6 user profiles and below minimum sample weight indication - all combine to provide an easy yet efficient weighing experience
  • Built for sophisticated, professional weighing
  • Intelligent performance for applications requiring extreme accuracy
  • Intuitive software provides an extremely modern user experience
  • Ingenious construction designed to enhance usability
  • Two motorized doors operated by 4 sensors or onscreen button
  • Applications: Weighing, percent weighing, parts counting, check weighing, dynamic/animal weighing, filling, totalization, formulation, differential weighing, density determination, peak hold, pipette adjustment, SQC
  • CAN/CSA C22.2 61010-1, UL 61010-1, IEC 61010-1, FCC Part 15 (Class A), Industry Canada ICES-001 (Class A), IEC 61326-1, (Class B Emissions, Industrial Immunity)
