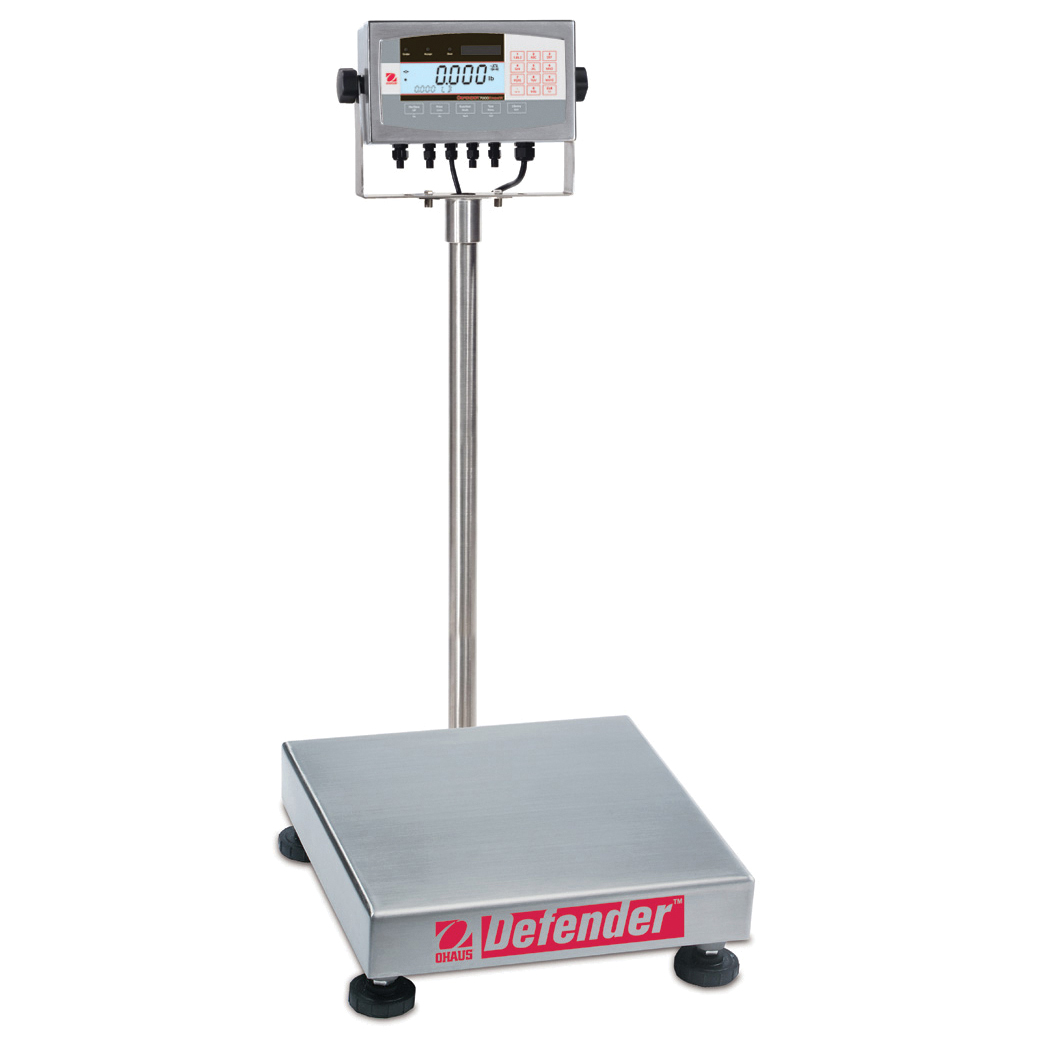

Defender® 7000 Washdown D71XW250WX4 Model Bench Scale, 100 kg, 10 g Resolution
Bench Scale, 100 kg, 577 L x 457 W x 940 mm H, Stainless Steel, 457 L x 457 mm W Stainless Steel Platform, 10 g Readability, 10 g Repeatability, Within 2 sec Stabilization Time, 26.8" Painted Steel Column, Model D71XW250WX4
- Manufacturer Part No: 80501541
- SECO Part No: OHS-80501541
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
The Ohaus® Defender™ 7000 series is a feature-rich line of bench scales, combining a stainless steel D71XW indicator with a square, all-stainless steel washdown base and a stainless steel column. Ideal for shipping and receiving, production, packaging and general commercial and industrial weighing applications, the Defender™ 7000 offers a multifunctional indicator with multiple weighing units, alpha-numeric keypad and software modes to meet the requirements of industrial and lab applications. With rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender™ 7000 can meet the needs of demanding industrial operations.
| Capacity | : | 100 kg |
| Dimension | : | 577 L x 457 W x 940 mm H |
| Resolution | : | 10 g |
| Repeatability | : | 10 g |
| Platform Dimension | : | 457 L x 457 mm W |
| Platform Material | : | Stainless Steel |
| Battery Life | : | 35 Hours |
| Model | : | D71XW250WX4 |
| Battery Type | : | NiMH |
| Calibration Mass | : | 1 kg/lb to 100% of Capacity (Span), 3 or 5 Point (Linearity) |
| Calibration Type | : | Span/Linearity |
| Connectivity | : | RS232, External Tare Input |
| Display Type | : | 7 Segment 6 Digit 1" High LCD with White LED Backlit |
| Draftshield | : | No |
| Electrical Requirement | : | 100 to 240 VAC, 50/60 Hz |
| IP Rating | : | IP66 (Indicator), IP67 (Loadcell) |
| Legal For Trade | : | NTEP Certified, Measurement Canada Approved |
| Material (ml/min) | : | Stainless Steel |
| Operating Condition | : | -10 to 40°C Temperature |
| Overload Capacity | : | 150% of Maximum Capacity |
| Power Source | : | AC Adapter or Battery Powered |
| Stabilization Time | : | Within 2 sec |
| Weighing Unit | : | lb, oz, lb:oz, kg, g, custom unit |
| Weight | : | 39.4 kg |
- All stainless-steel construction with IP66/NEMA4X protection for indicator, with loadcells protected to IP67
- 10000 to 12500d Default resolution, 1:5000 certified resolution
- Quick display of results using large dual line LCD with high-contrast white backlight
- Temporary display of 10X readability in weighing mode using quick key press
- Easy-to operate with positive feedback 5-function key and alpha-numeric membrane keypad
- Multiple weighing modes including counting, percent weighing, dynamic/animal weighing, checkweighing, display hold, and accumulation
- 255 Item library data storage function
- Internal power supply with universal line cord - optional NiMH internal rechargeable power pack available
- Includes RS232 interface with GMP/GLP data output including date and time, and external analog base input for dual-base counting
- Base and indicator connected using quick connect plug
- Options include DC relay control kit, AC relay control kit, RS485/422 and 2nd RS232 interfaces, Alibi memory module
- Internal slot for capacity label - protects label from the effects of moisture and external environments
- 3-Color LED checkweigh indication - with configurable beeper alert
- Fully adjustable feet - four rugged, adjustable feet help prevent slippage on wet or uneven surfaces
- Keypad- positive feedback membrane keys, 5 function keys and alpha-numeric keypad
- Auto-zero tracking - off, 0.5, 1 or 3 divisions
- Zero range: 2% or 100% of capacity
- 26.8" Painted steel column
- NTEP (CC Number 09-102 For Indicator, 01-048A1 For Bases), Measurement Canada (Approval Number AM-5762 for Indicator, AM-5719 for Bases), cULus 2005/95/EC, EN60950-1:2001, FCC Part 15 Class A 2004/108/EC, ISO 9001:2008
