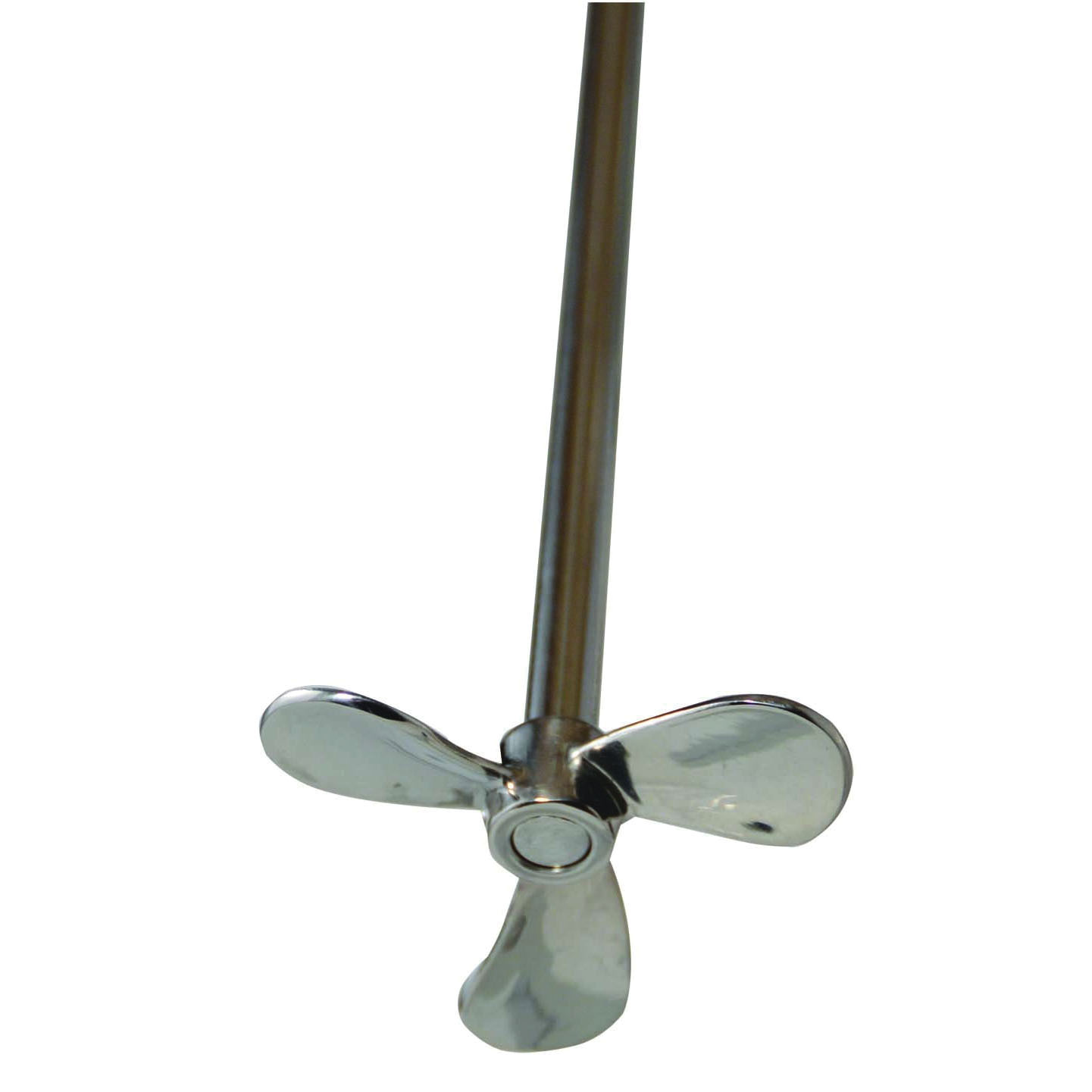

Caframo Cast Pitched Blade Impeller, 64 mm dia Blade
Impeller, 64 mm dia Blade, 400 L x 8 mm dia, Electropolished 316L Stainless Steel, Axial Flow Pattern, Left Hand Blade Rotation, Cast Pitched Blade Type, For BDC1850, BDC3030, BDC6015, BDC2002, BDC2010 Overhead Stirrers
- Manufacturer Part No: A166
- SECO Part No: 22-2165-06
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
This popular impeller serves a wide range of stirring applications, pairing the blade and shaft in a convenient package. This axial flow impeller is effective for high speed, low to medium viscosity mixing. The 65 mm (2.5") dia blade fixes to an 8 mm (0.3125") dia shaft with included set screws. Blade and shaft are electropolished 316L stainless steel. For low shear, high top to bottom pumping capacity with high gas injection, able to vortex 19 L (5 gal) of water at 3600 rpm. This product replaces the pitched blade propeller model A160.
| Material (ml/min) | : | 316L Stainless Steel |
| For Use With | : | For BDC1850, BDC3030, BDC6015, BDC2002, BDC2010 Overhead Stirrers |
| Shaft Diameter | : | 8 mm |
| Shaft Length | : | 400 mm |
| Weight | : | 181 g |
| Type | : | Cast Pitched Blade |
| Blade Dimension | : | 64 mm dia |
| Blade Rotation | : | Left Hand |
| Finish | : | Electropolished |
| Flow Pattern | : | Axial |
- Secured to shaft with set screws
- Pitched blade propeller
- High speed low shear axial flow
- Chemically inert and corrosion resistant
- Able to adjust position of impeller blade along shaft
- Scale up advantage if propeller used in production
- Serves a wide range of applications - a popular choice of impeller
