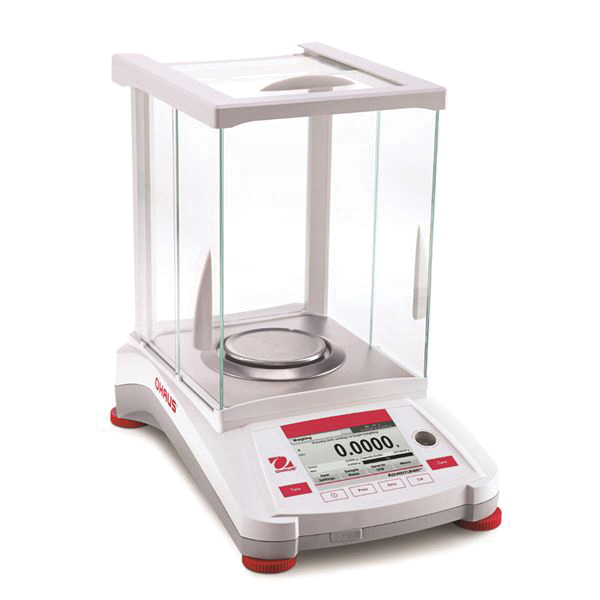

Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the Ohaus® Adventurer® incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer® is the most complete balance in its class. Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages.
Capacity
|
:
|
120 g
|
Dimension
|
:
|
340 H x 354 W x 230 mm D
|
Pan Size
|
:
|
90 mm dia
|
Material (ml/min)
|
:
|
Metal Base, ABS Housing
|
Resolution
|
:
|
0.1 mg
|
Repeatability
|
:
|
0.1 mg
|
Pan Material
|
:
|
Stainless Steel
|
Linearity
|
:
|
±0.2 mg
|
Calibration Type
|
:
|
External Calibration
|
Stabilization Time
|
:
|
3 sec
|
Weighing Unit
|
:
|
g, mg, ct, oz, ozt, lb, dwt, grn, N, mom, msg, hkt, sgt, twt, tical, tola, baht, Custom Units 1
|
Display Type
|
:
|
4.3" Full-color Touchscreen WQVGA Graphic LCD
|
Operating Condition
|
:
|
10 to 30°C, 80% RH, Non-condensing
|
Connectivity
|
:
|
RS232, USB, USB Host, GLP/GMP Data Output with Real-time Clock
|
Electrical Requirement
|
:
|
Input: 100 to 240 VAC, 0.3 A, 50 to 60 Hz, Output: 12 VDC, 0.84 A
|
Weight
|
:
|
11.3 lb
|
Class
|
:
|
Class I
|
Draftshield
|
:
|
Yes
|
Minimum Weight
|
:
|
0.2 g
|
Model
|
:
|
AX124/E
|
Power Source
|
:
|
AC Adapter
|
Sensitivity Temperature Drift
|
:
|
1.5 ppm/°C
|
Storage
|
:
|
10 to 60°C, 10 to 90% RH, Non-condensing
|
Tare Range
|
:
|
To Capacity by Subtraction
|
With
|
:
|
In-use Cover, Auxiliary Display Model as an Accessory
|
- Fast stabilization and reliable operation are enhanced by the AutoCal™ option to ensure solid weighing performance and accurate, repeatable results for standard laboratory applications
- The wide viewing angle color touchscreen provides access to all of Adventurer®'s applications, while dual USB ports with GLP/GMP tracking capabilities assist in the monitoring and reporting of data
- The two-piece, top-mounted draftshield doors reduce the footprint of the doors in the rear of the balance when open, and open wide on both sides in order to provide ample room to place samples
- Ready for your lab, wherever that may be
- Stability, accuracy, and fast operation ensure optimal weighing results in routine weighing tasks
- Weighing performance: Delivers stable and reliable weighing results for routine weighing tasks
- Stabilization time: Adventurer®'s fast stabilization time improves productivity in the laboratory
- Color touchscreen offers easy and fast operation of Adventurer®'s applications
- Equipped with the connectivity and functional features required in laboratories
- Space-saving draftshield designed to improve user experience and accessibility
- Draftshield doors are constructed of two glass panels, reducing the space required on the lab bench when the doors are open
- Wide door entry provides unobstructed access and allows larger weighing vessels to be easily placed on the pan, reducing the chance of accidental spillage
- Easy-to keep clean in order to ensure a safe workspace by minimizing contamination
- RS232 interface, integral weigh below hook, full housing in-use cover, removable stainless steel pan, die-cast metal bottom housing, security bracket, illuminated up-front level indicator, (4) adjustable feet, software lockout menus, stability indicator, software overload/underload indicators, user selectable environmental settings, audible indicator, user selectable brightness settings, auto-dim, touchscreen calibration, auto tare, user selectable operating language
- Applications: Weighing, parts counting, percent weighing, check weighing, animal/dynamic weighing, totalization/statistics, formulation, density determination, display hold
- NIST Handbook 44, Measurement Canada Weights and Measures Regulations (Class I, nmax 220000, Class II, nmax 52000), CSA C22.2 Number 61010-1, UL 61010-1, IEC 61010-1, FCC Part 15 Class A, ICES-001 Class A, IEC 61326-1 (Emissions Class B, Immunity Industrial Requirements)
